Pre-configured System

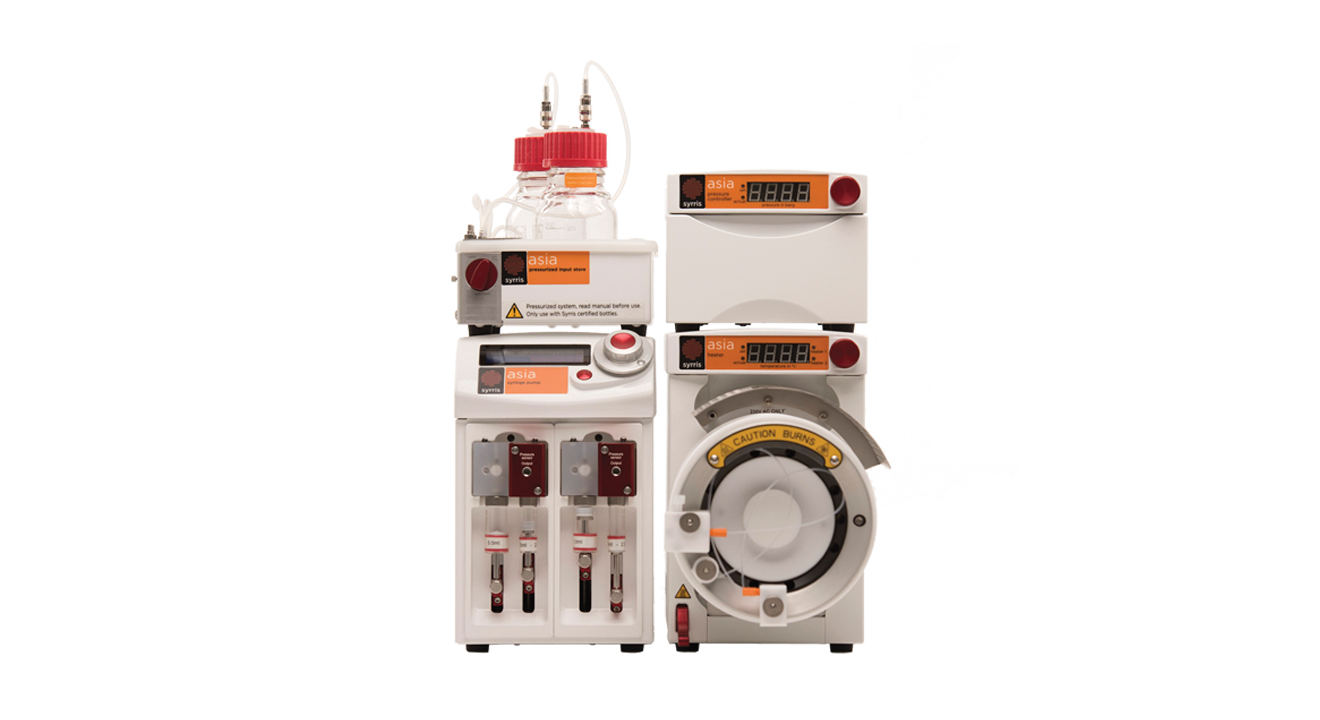

Asia Scale-Up Flow Chemistry System

For easy scale-up of reactions from milligram to multi-gram quantities using flow chemistry.

Flow reaction parameters can be optimized using a small microreactor of few milligrams before moving onto a large tube reactor system for synthesizing multi-gram quantities of products.  The systems enable exploratory reactions to be performed and optimized on a few milligrams scale.  The manufactured amount can then be increased to kilograms per day on the same system with minimal setup changes.

Syrris Asia Heater Glass Microreactor close-up
Syrris Asia Heater attaching Tube Reactor

The easy-to-use and affordable systems contain all essential flow system parts.  All Asia systems are future-proof and can be seamlessly upgraded with additional features and modules as the user experience with flow chemistry grows and/or needs change.

All Asia systems are available as either regular or advanced configurations to suit different requirements and budgets, and all systems include the Asia Syringe Pump as a common module.

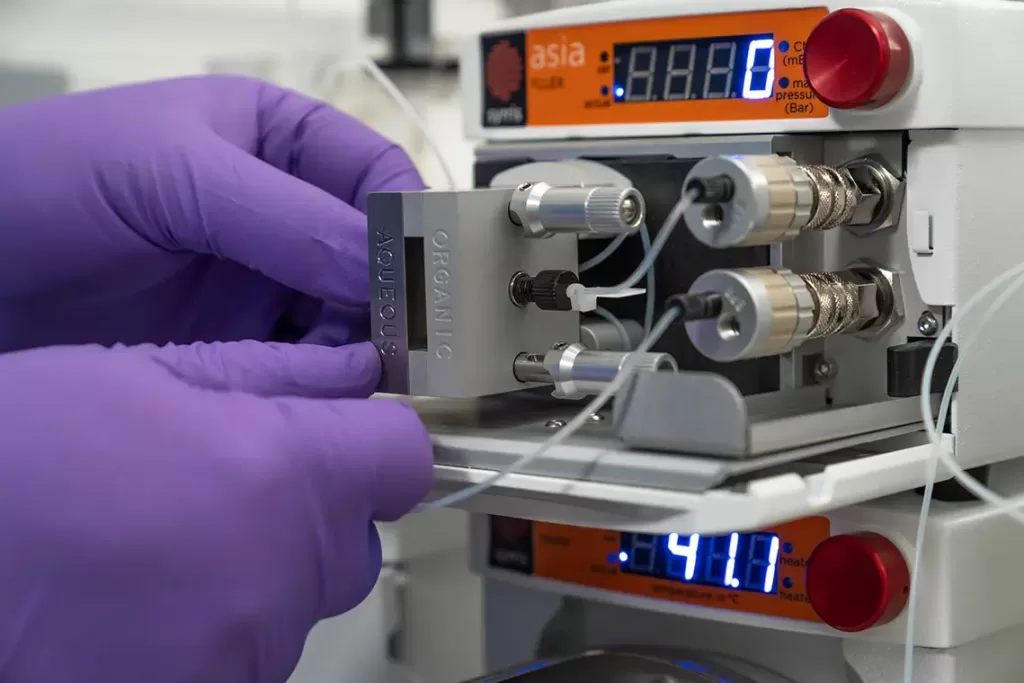

Syrris Asia FLLEX (Flow Liquid Liquid EXtraction) close-up
Syrris Asia Cryo Controller close-up
Syrris Asia Manager Software close-up

Specifications

Regular
Advanced
Flow rate
1 μL/min to 10 mL/min*
Pressure range
0 to 20 bar**
Temperature range
-68 °C*** to +250 °C
-100 °C to +250 °C
Pump channels
2
4
Tube reactors
Column reactors
Aqueous work-up
Product collection
manual
automated
Pressurized inputs
Analysis interface
Automation

*Depending on syringe size
**10 bar when using fluoropolymer tube reactors
***Depending on cooling solution

Syrris Asia Heater Glass Microreactor close-up
Syrris Asia Chip Climate Controller with microreactor close-up
Syrris Asia Heater Tube Reactor close-up
Syrris Asia Tube Reactor

Modules

  1. Pumping

    • Asia Pressurized Input Store

      (included)

      The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x […]

      View module details
    • Asia Syringe Pump

      (included)

      Available in
      1 included, with option to add more

      Designed specifically for flow chemistry the Asia Syringe provides an ultra-smooth flow rate of 1.0 μL to 10 mL/min and […]

      View module details
  2. Flow Reactor

    • Asia Heater

      (included)

      The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]

      View module details
    • Asia Tube Cooler

      (included)

      The Asia Tube Cooler enables a range of fluoropolymer and stainless steel Asia Tube Reactors to be cooled to as […]

      View module details
    • Asia Cryo Controller

      (optional)

      This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to […]

      View module details
  3. Post Reaction Modules

    • Asia Pressure Controller

      (included)

      The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 […]

      View module details
    • Asia FLLEX (Flow Liquid Liquid EXtraction)

      (optional)

      The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this […]

      View module details
    • Asia Sampler and Dilutor

      (optional)

      The Asia Sampler and Dilutor enables on-line reaction analysis by offering automated sample extraction, dilution and transfer to virtually any […]

      View module details
  4. Automation

    • Asia Automator

      (optional)

      The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, […]

      View module details
    • Asia Manager PC Software

      (optional)

      Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software […]

      View module details
  5. Optional modules

    • Asia Syringe Pump

      (optional)

      Available in
      1 included, with option to add more

      Designed specifically for flow chemistry the Asia Syringe provides an ultra-smooth flow rate of 1.0 μL to 10 mL/min and […]

      View module details
    • Asia Heater

      (optional)

      The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]

      View module details
    • Asia Cryo Controller

      (optional)

      This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to […]

      View module details
    • Asia FLLEX (Flow Liquid Liquid EXtraction)

      (optional)

      The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this […]

      View module details
    • Asia Sampler and Dilutor

      (optional)

      The Asia Sampler and Dilutor enables on-line reaction analysis by offering automated sample extraction, dilution and transfer to virtually any […]

      View module details
    • Asia Automator

      (optional)

      The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, […]

      View module details
    • Asia Manager PC Software

      (optional)

      Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software […]

      View module details
