Pre-configured System

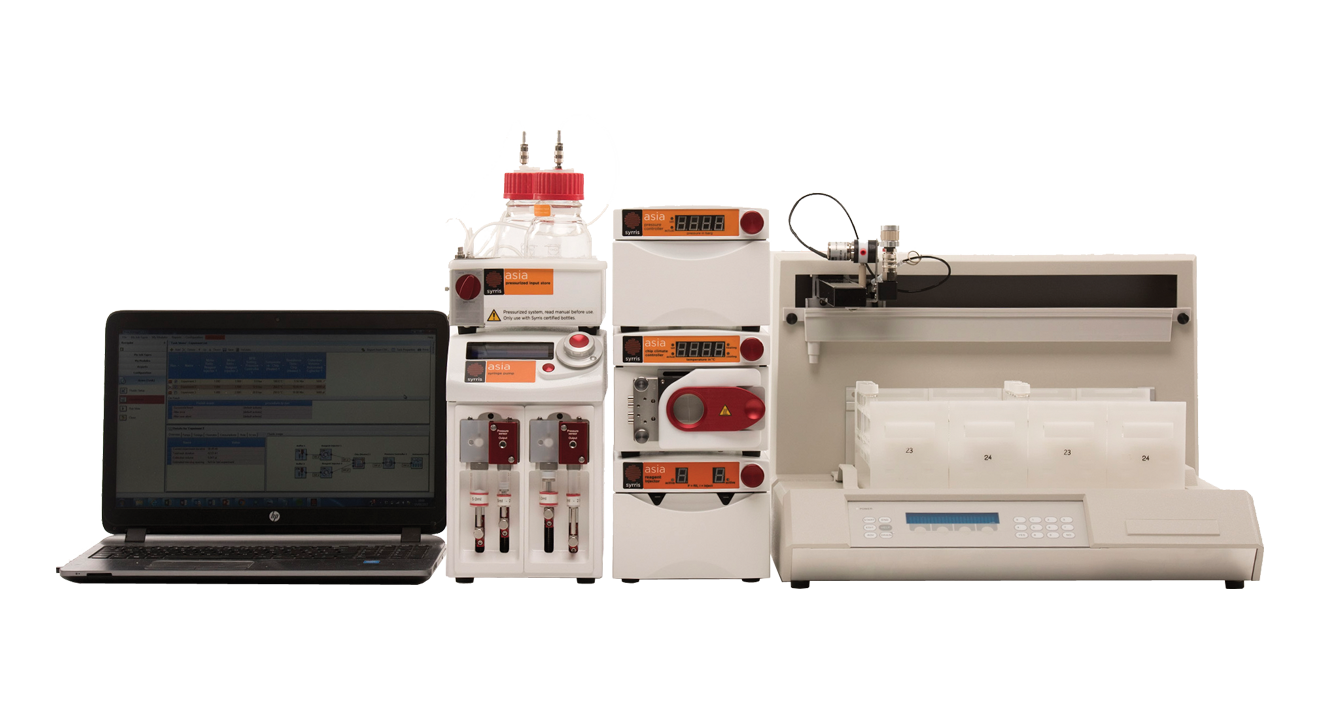

Asia Process Optimization Flow Chemistry System

Ideal for converting a batch chemistry reaction to a flow chemistry process and varying parameters for reaction optimization.

The Asia Process Optimization Flow Chemistry System offers easy setup of tens of automated reactions using the intuitive Asia Manager Software. The systems will calculate the required flow rates and reagent amounts and fully automate each reaction.  Risk prevention features such as automatic shutdown in case of detected blockage ensure maximum safety is maintained during the run.  The systems can be expanded with capabilities such as electrochemistry.

Syrris Asia Manager Software close-up
Syrris Asia Automator connecting ports
Syrris Asia Automated Collector in use in lab

The easy-to-use and affordable systems contain all essential flow system parts.  All Asia systems are future-proof and can be seamlessly upgraded with additional features and modules as the user experience with flow chemistry grows and/or needs change.

All Asia systems are available as either regular or advanced configurations to suit different requirements and budgets, and all systems include the Asia Syringe Pump as a common module.

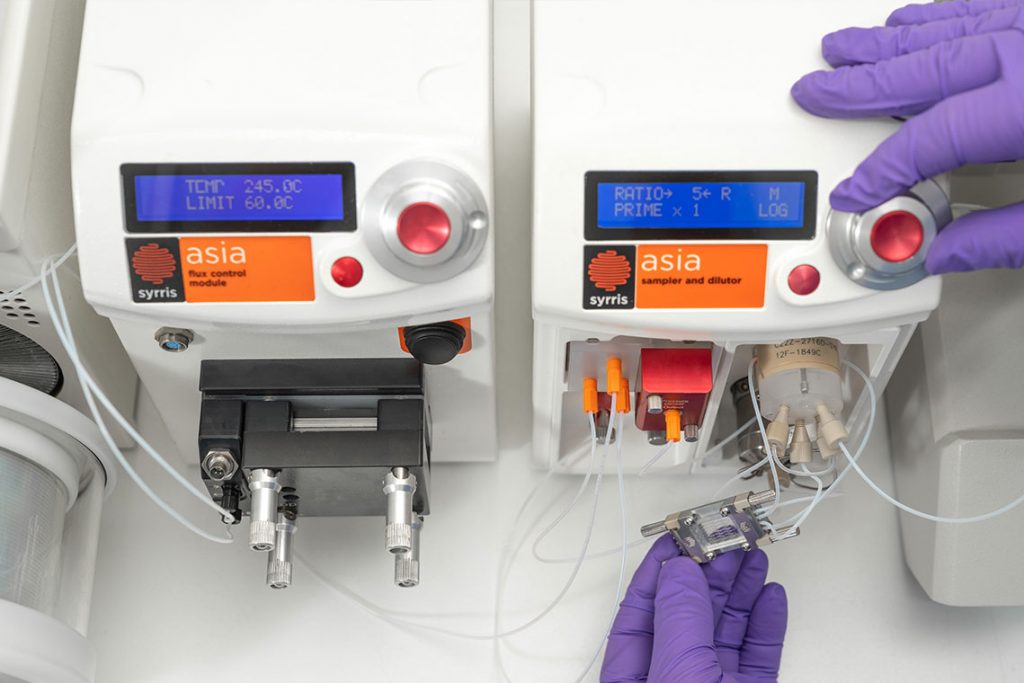

Syrris Asia Sampler and Dilutor close-up

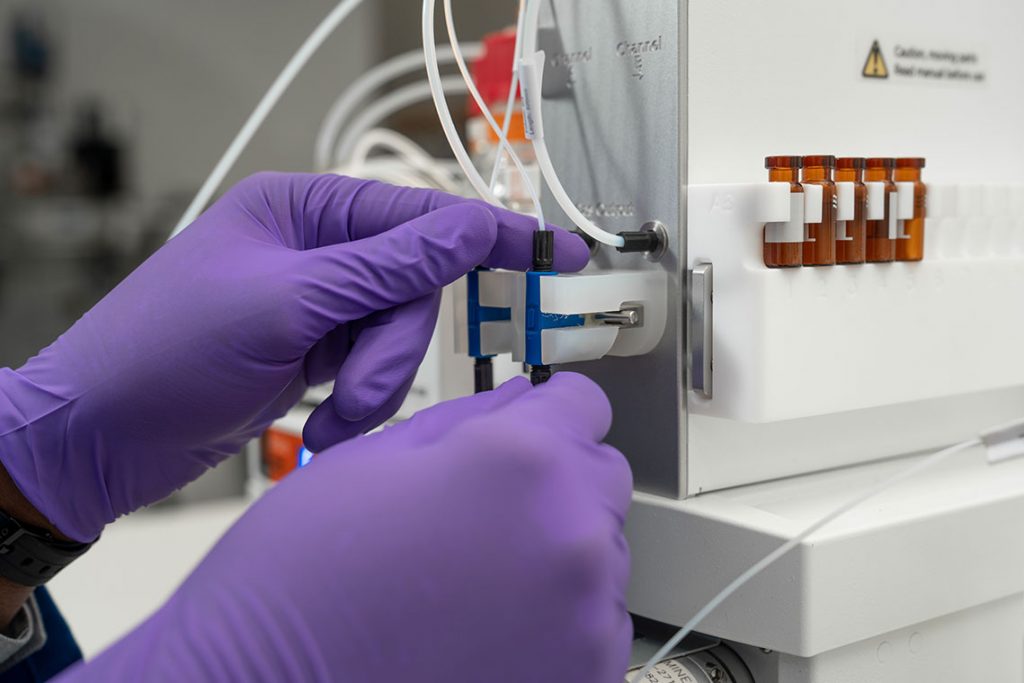

Syrris Asia Automated Reagent Injector close-up

Specifications

Regular
Advanced
Flow rate
1 μL/min to 10 mL/min*
Pressure range
0 to 20 bar**
Temperature range
-15 °C to +250 °C
Pump channels
2
4
Chip reactors
Tube reactors
Column reactors
Product collection
automated
automated
Aqueous work-up
Pressurized inputs
Injection valves
4
Auto injection valves
2
Automation

*Depending on syringe size
**10 bar when using fluoropolymer tube reactors

Syrris Asia Manager Software close-up

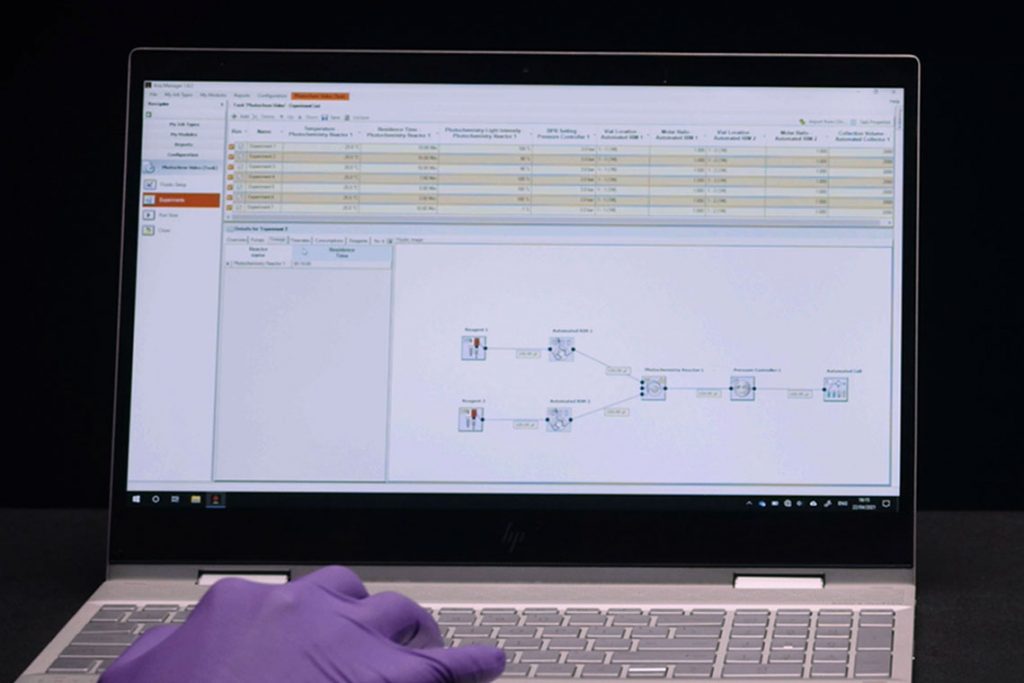

Syrris Asia Manager Software laptop close-up

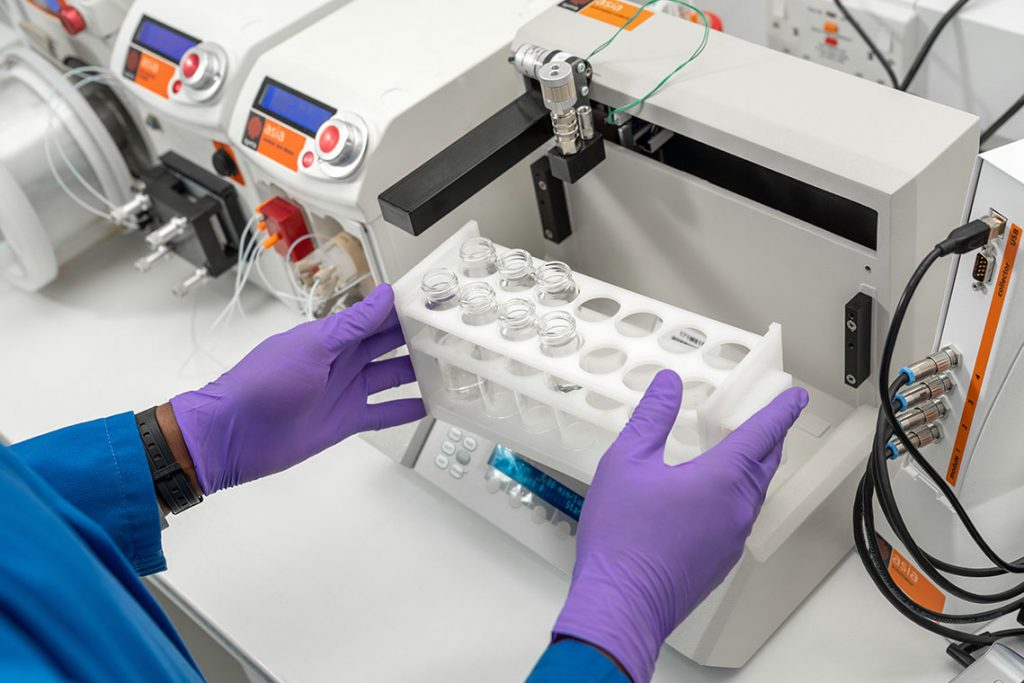

Syrris Asia Automated Collector close-up

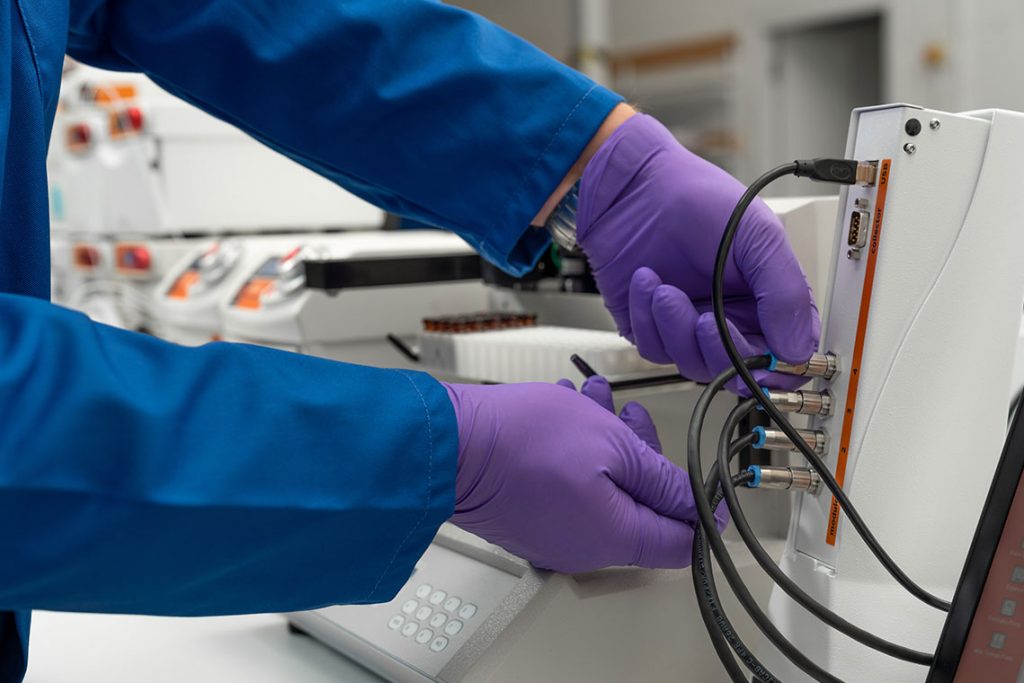

Syrris Asia Automator close-up

Modules

  1. Pumping

    • Asia Pressurized Input Store

      (included)

      The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x […]

      View module details
    • Asia Syringe Pump

      (included)

      Available in
      1 included, with option to add more

      Designed specifically for flow chemistry the Asia Syringe provides an ultra-smooth flow rate of 1.0 μL to 10 mL/min and […]

      View module details
  2. Reagent Injection

    • Asia Reagent Injector

      (included)

      The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, […]

      View module details
  3. Flow Reactor

    • Asia Chip Climate Controller

      (included)

      The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC […]

      View module details
    • Asia Heater

      (included)

      The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]

      View module details
  4. Post Reaction Modules

    • Asia Pressure Controller

      (included)

      The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 […]

      View module details
  5. Sample Collection

    • Asia Automated Collector

      (included)

      The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the […]

      View module details
  6. Automation

    • Asia Automator

      (included)

      The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, […]

      View module details
    • Asia Manager PC Software

      (included)

      Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software […]

      View module details
  7. Optional modules

    • Asia Syringe Pump

      (optional)

      Available in
      1 included, with option to add more

      Designed specifically for flow chemistry the Asia Syringe provides an ultra-smooth flow rate of 1.0 μL to 10 mL/min and […]

      View module details
    • Asia Automated Reagent Injector

      (optional)

      The Asia Automated Reagent Injector allows automated aspiration and loading of multiple reagents into injection loops under inert conditions; and […]

      View module details
    • Asia Chip Climate Controller

      (optional)

      The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC […]

      View module details
    • Asia FLLEX (Flow Liquid Liquid EXtraction)

      (optional)

      The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this […]

      View module details
    • Asia Sampler and Dilutor

      (optional)

      The Asia Sampler and Dilutor enables on-line reaction analysis by offering automated sample extraction, dilution and transfer to virtually any […]

      View module details
