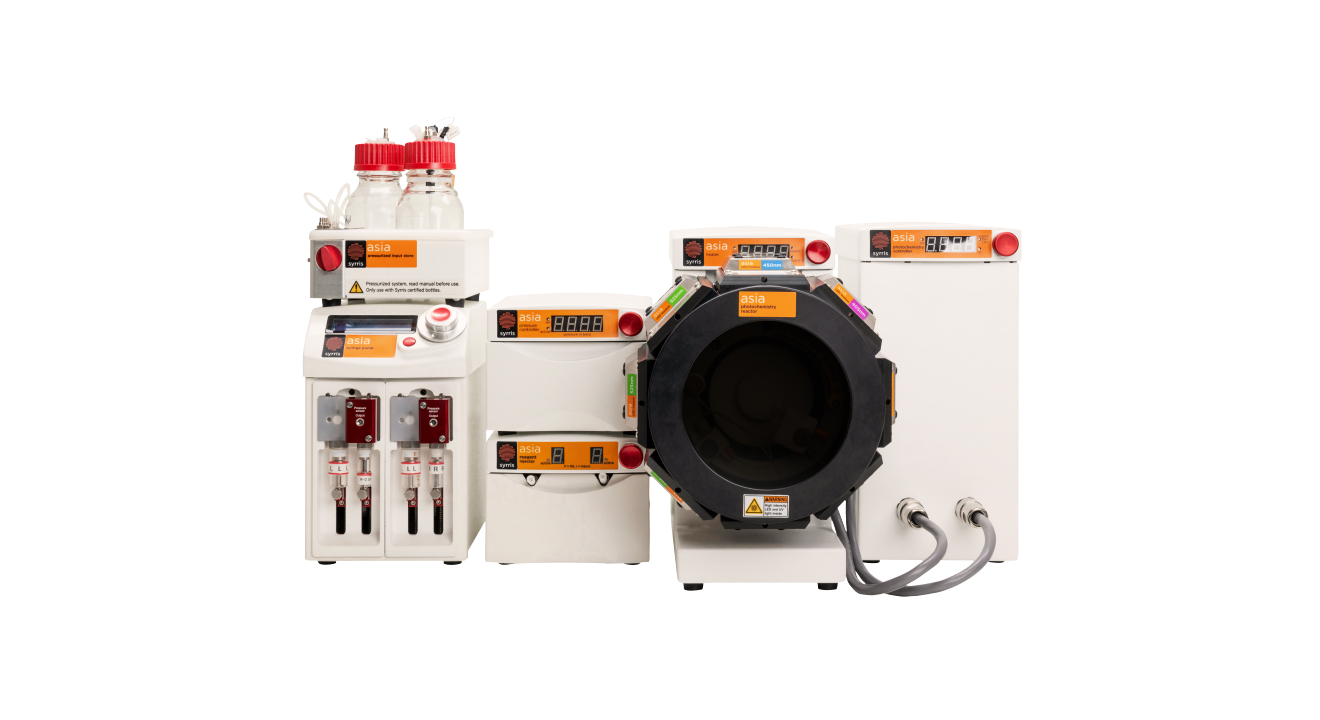

Pre-configured System

Asia Photochemistry System

Makes novel continuous photochemistry applications accessible without the limitations of traditional batch requirements.

View our suitable applications list

Applications

This product is suitable for the following applications.

At a glance

Staying true to Syrris’s user-focused flow chemistry product design, Asia Photochemistry System enables the quick and easy interchange of single, high powered LED modules for rapid screening and scale up of reactions to optimize conditions. The ability to increase the light intensity (up to 108W)* reduces reaction times and increases production rates.

Transform your Asia Heater or Asia Cryo Controller for precise and accurate temperature control, from -40°C to +80°C, with no external cooling sources required. The advanced technology allows vessels from 50ml.

*dependant on wavelength

  • Accurate temperature control, from -40°C to +80°C
  • Tune your light intensity (up to 108W)*
  • Interchangeable modules can be changed in seconds

Interchangeable LED Modules

Monochromatic, high powered LED modules are available in a wide range of wavelengths for precise control of photochemistry applications.

House up to 8 interchangeable single wavelength modules in one reactor. Run reactions on multiple wavelengths to access novel chemistries, or add up to 8 light sources of the same value for rapid screening and scale-up to optimize reactions.

Reaction throughputs of mg’s to 10’s g/hour.

Syrris Asia Photochemistry Single Wavelength and Blank Modules

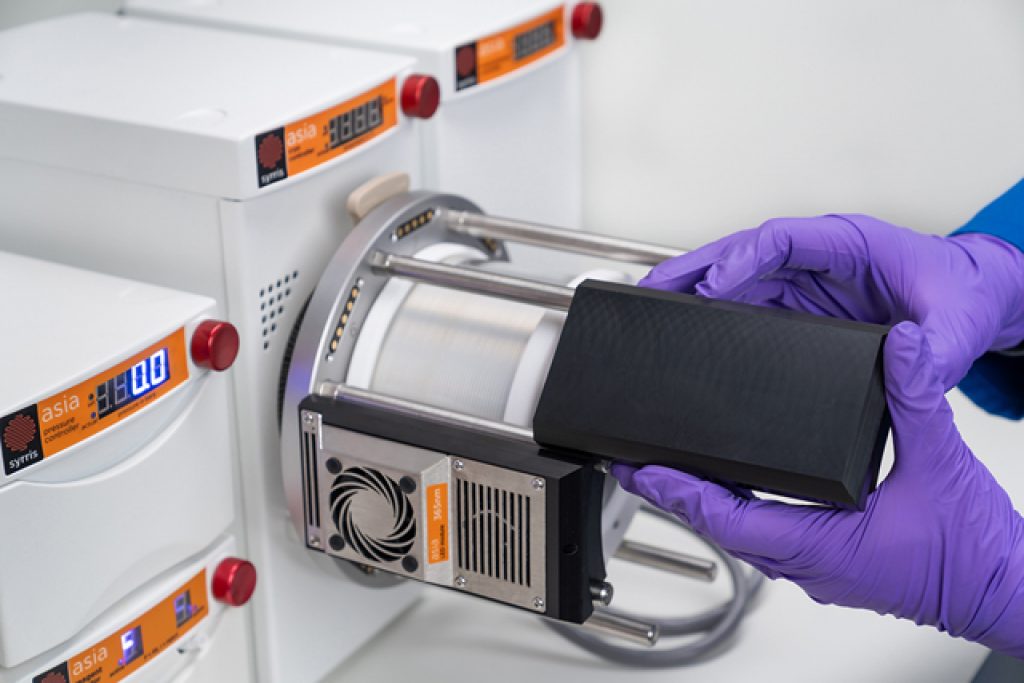

Syrris Asia Photochemistry chemist connecting blank module

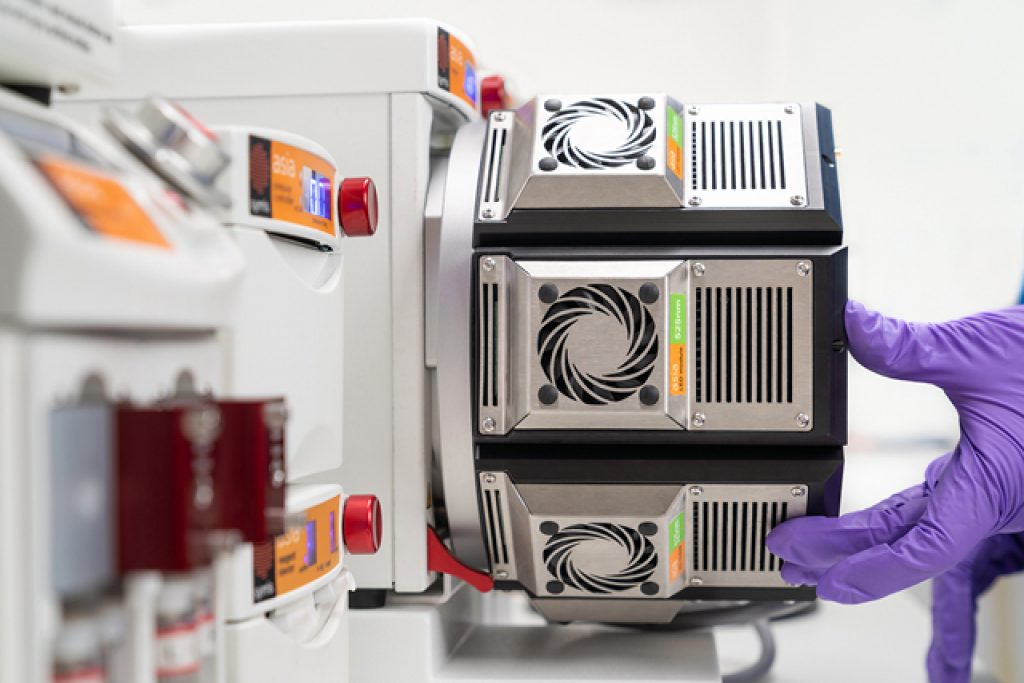

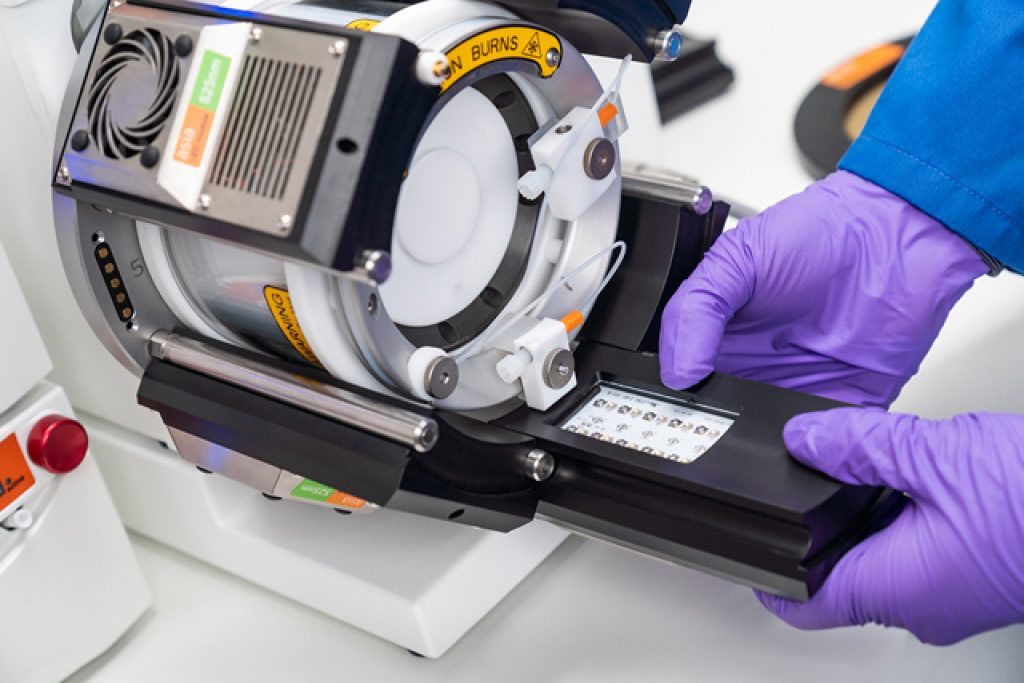

Syrris Asia Photochemistry with chemist connecting single wavelength module

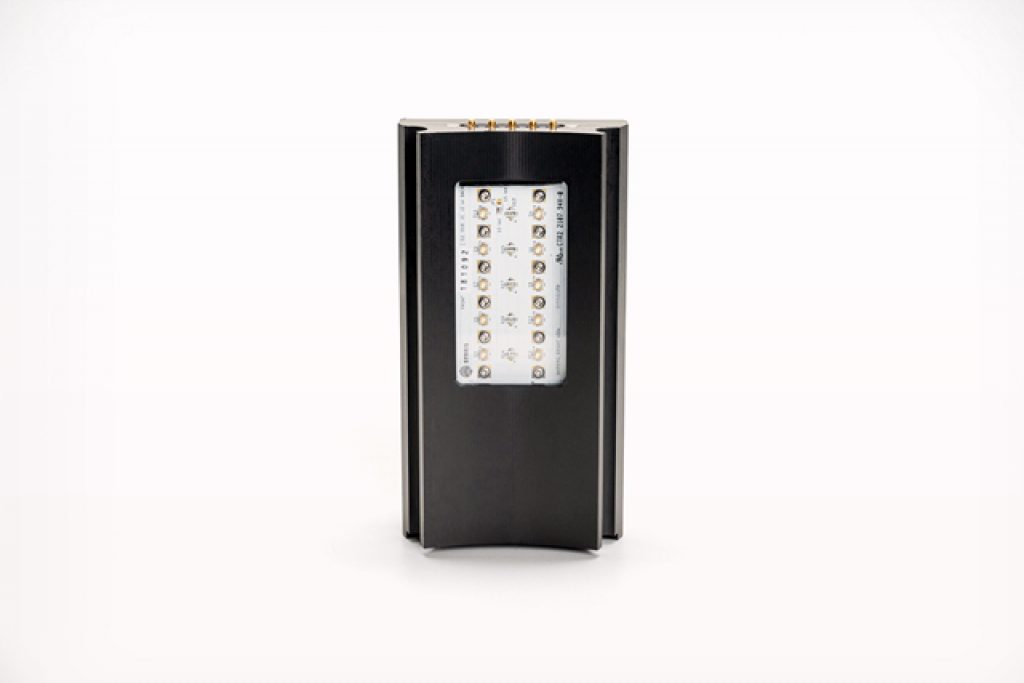

Syrris Asia Photochemistry Reactor Single Wavelength Module back

No external cooling required

Maintain optimum performance even at maximum power without the need for external cooling, resulting in longer lifetimes of your LED modules and efficient temperature control of your reactions.

Temperatures as low as -40oC and optimum performance even when heated to +80oC due to the low heat load of LED modules, which requires much less cooling to maintain control of the reaction temperature.

Syrris Asia Photochemistry Reactor Single Wavelength Module with chemist connecting black background

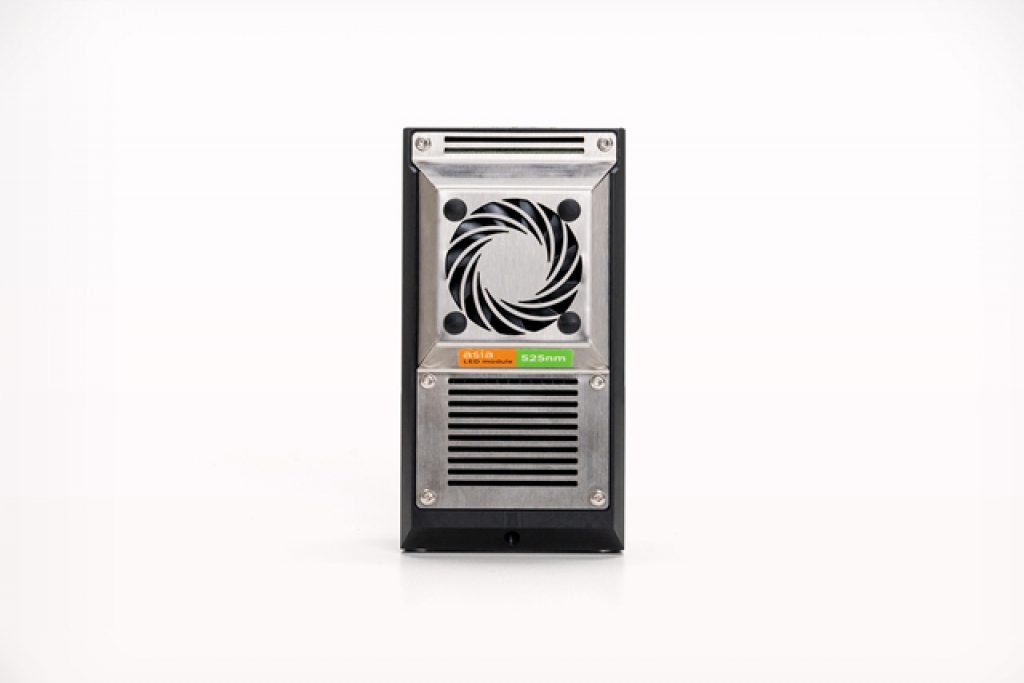

Syrris Asia Photochemistry Reactor Single Wavelength Module Front

Greater selectivity and light intensity

The unique design of the Asia Photochemistry Reactor enables users to select from a wide range of wavelengths and gradually scale-up reactions, providing greater selectivity for reaction optimization.

Tune your light intensity (up to 108W)* to reduce reaction times and increase production rates. No additional light sources are required to increase throughput.



*dependant on wavelength

Syrris Asia Photochemistry Reactor Single Wavelength Module with chemist connecting

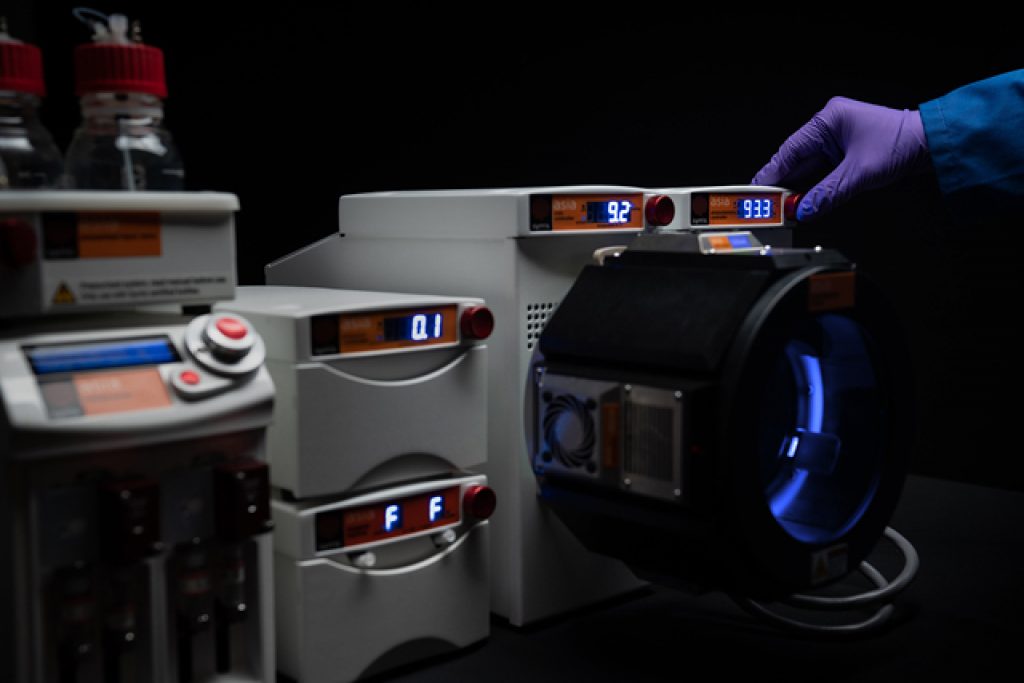

Syrris Asia Photochemistry Reactor light intensity tuned blue
Syrris Asia Photochemistry Reactor light intensity tuned green

In-built safety

The Asia Photochemistry Reactor is designed to be as safe as possible. Interlocked fittings and a light-proof design means zero exposure to high intensity light.

The light source is linked to the power supply; any component disconnections trigger the light source to shut down immediately, preventing exposure to the user. Provides optimum safety for use within standard fumehoods.

Asia Photochemistry Reactor Safety Screen with chemist

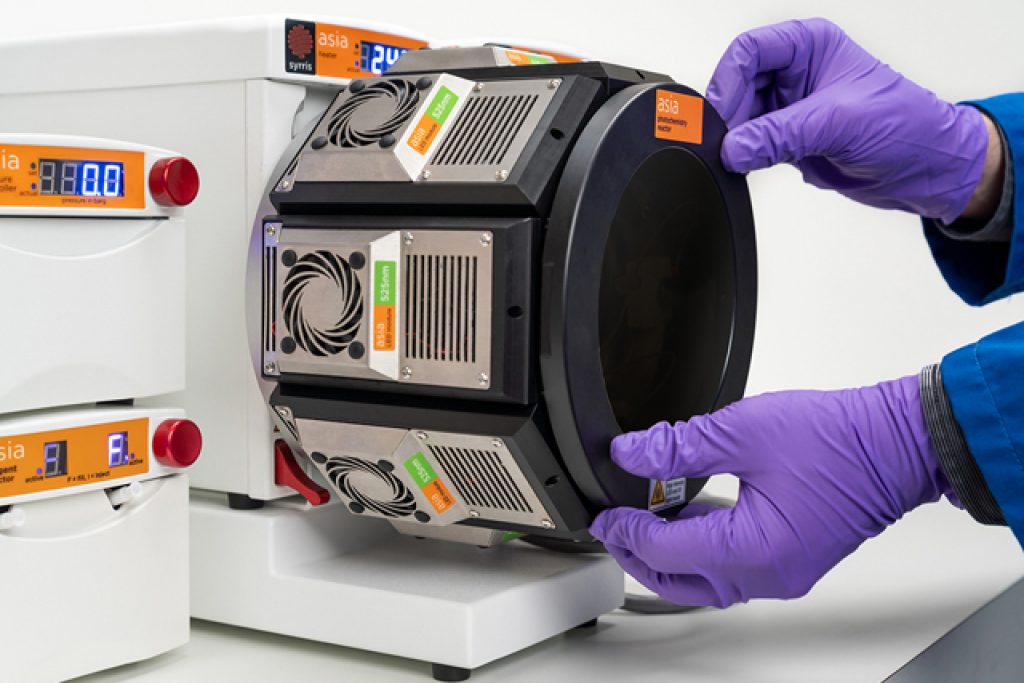

Asia Photochemistry Reactor Safety Screen with chemist attaching

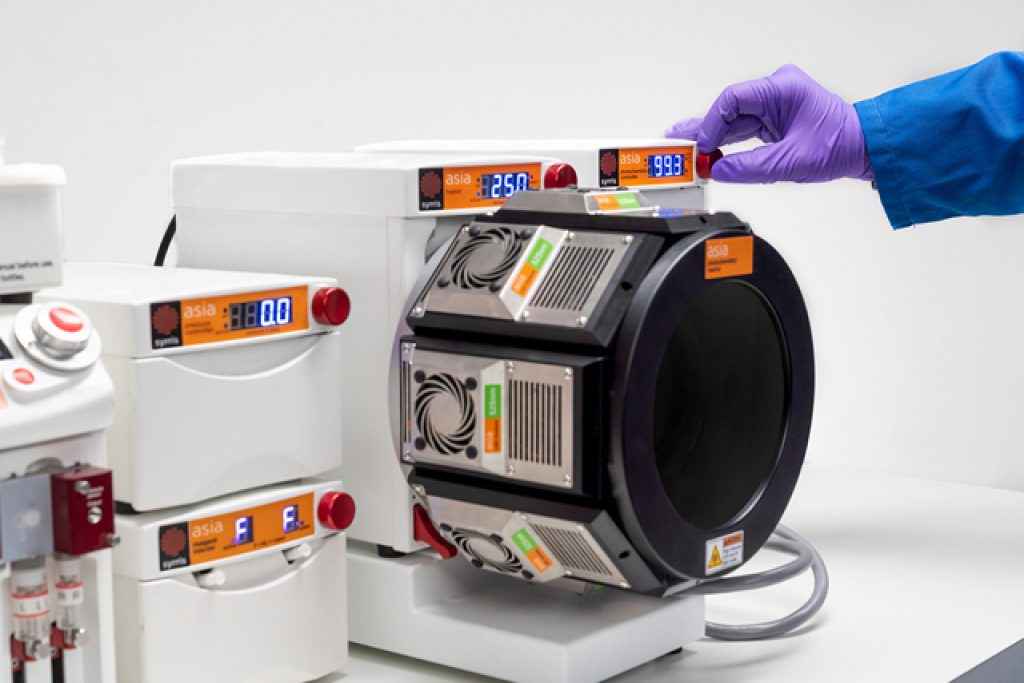

Asia Photochemistry Reactor chemist tuning light intensity

Specifications

Reactor volume 4 mL or 16 mL
Reactor temperature -40°C – +80°C (when using Asia Heater or Asia Cryo Controller module)
Temperature settings Set to 1ºC and displayed to 0.1ºC
Number of LED modules Up to 8 x LED modules at fixed or mixed wavelengths or blank modules
LED module wavelength Monochromatic lights at 365, 385, 405, 420, 450 and 525 nm
Control module display Light intensity and photon flux
Power Variable power from 10 – 100%
Safety Module completely interlocked for safety
Compatibility Compatible with the Asia flow chemistry system or as a stand-alone module
Dimensions (Asia Photochemistry Controller) (H) 335 mm x (W) 160 mm x (D) 270 mm
Dimensions (Asia Photochemistry Reactor Assembled on the Asia Cryo Controller) (H) 335 mm x (W) 245 mm x (D) 420 mm
Dimensions (Asia Photochemistry Reactor Assembled on the Asia Cryo Controller) (H) 335 mm x (W) 245 mm x (D) 600 mm
Asia Photochemistry Tube Reactor with chemist
Asia Photochemistry chemist connecting blank module
Syrris Asia Photochemistry Single Wavelength Module fan close-up
Syrris Asia Photochemistry with chemist connecting single wavelength module

What we say

The design is unique. The LED modules are housed so they can be quickly and easily changed, combined for multiple wavelengths, and allow 8 x of the same LED module for scaling. Like all things in the Asia range, this provides complete flexibility.

Andrew Mansfield - Syrris' Head of Flow Chemistry
Andrew Mansfield - Syrris' Head of Flow Chemistry

Webinar:
A Spotlight on Flow Photochemistry

Over the past 20 years, flow chemistry has had a major impact on how chemists perform their work. In this webinar, Flow Chemistry Specialist, Leandro Carvalho, shows how flow chemistry reactors for continuous photochemistry are driving the adoption of this exciting field.

This webinar covers:

  • What photochemistry is and how flow enhances it
  • Modern photochemistry applications; game-changing flow photochemical reactions that have been performed in recent years
  • How you can expand your chemistry with Asia Photochemistry Reactor
A Spotlight on Flow Photochemistry
Over the past 20 years, flow chemistry has had a major impact on how chemists perform their work. In this webinar, our Flow Chemistry Specialist, Leandro Carvalho, puts the spotlight on continuous photochemistry.
Achieve unparalleled accuracy
Staying true to Syrris’s user-focused flow chemistry product design, Asia Photochemistry Reactor enables the quick and easy interchange of single, high powered LED modules for rapid screening

Modules

  1. Pumping

    • Asia Syringe Pump

      (optional)

      Available in
      1 included, with option to add more

      Designed specifically for flow chemistry the Asia Syringe provides an ultra-smooth flow rate of 1.0 μL to 10 mL/min and […]

      View module details
  2. Flow Reactor

    • Asia Photochemistry Reactor

      (included)

      Asia Photochemistry Reactor enables the quick and easy interchange of single, high powered LED modules for rapid screening and scale […]

      View module details
    • Asia Heater

      (included)

      The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]

      View module details
    • Asia Cryo Controller

      (included)

      This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to […]

      View module details
    • Asia Tube Reactor

      (included)

      The Asia Tube Reactors are large volume microfluidic reactors designed for preparative scale solution phase chemistry. The tube reactor contains […]

      View module details
