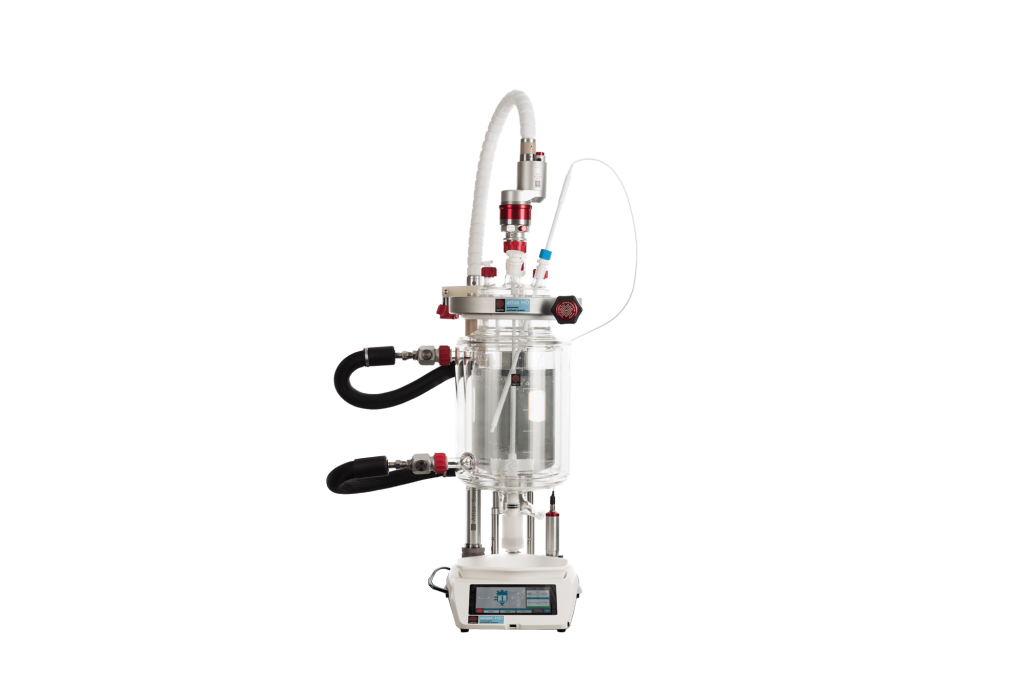

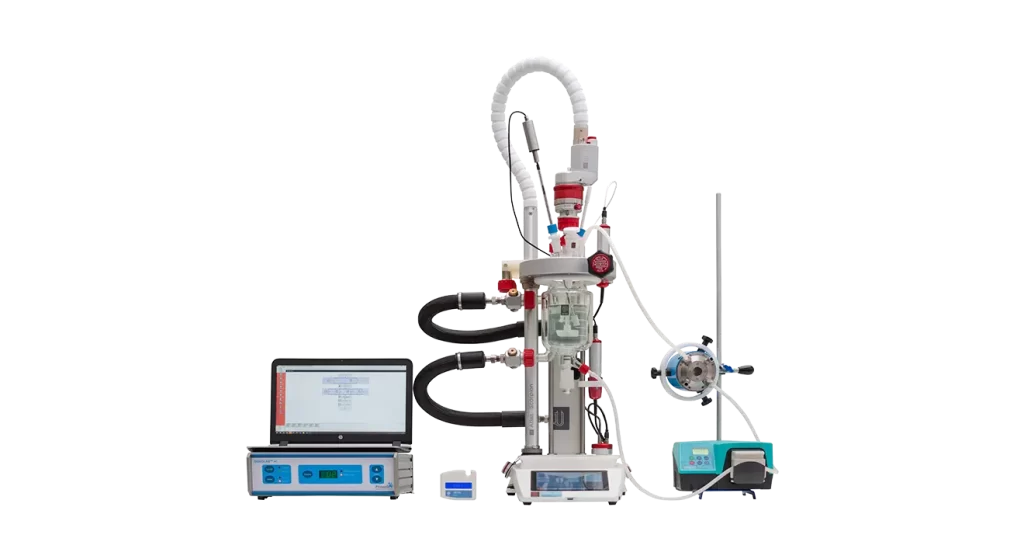

Atlas HD Crystallization Reactor

Allows crystallization processes to be monitored and controlled, as well as performing sonocrystallization or sonomilling techniques.

View our suitable applications list

Applications

This product is suitable for the following applications.

At a glance

The Atlas HD Crystallization Reactor allows turbidity to be monitored and modified by controlling temperature and/or additions of the vessel. Real-time data is displayed on the Atlas HD touchscreen and can be plotted using the software.

The proprietary ultrasound technology features a novel transducer-based design. It enablesof parameters such as particle size, shape, crystallinity, and polymorphism. Chemists have more reproducibility because of its design.

Monitor your reactions using the Atlas turbidity probe and node, and manage the process using the innovative SonoLab module for sonocrystallization or sonomilling techniques.

  • Real-time data displayed & plotted on Atlas HD touchscreen
  • Reproducible control over operations

Monitor your crystallization using the Atlas turbidity probe and node and control the process using the innovative SonoLab module to perform sonocrystallization or sonomilling techniques.

  • Real-time data displayed & plotted on Atlas HD touch screen
  • Reproducible control of crystallizations

Dimensions



Smallest vessel: 108cm H x 54cm W x 45cm D
Largest vessel: 115cm H x 58cm W x 45cm D
Power: 100-240 VAC, 50/60 Hz, 5A Fuse

Meet The Atlas HD Families

1. Controlled crystallization process using sonocrystallization techniques

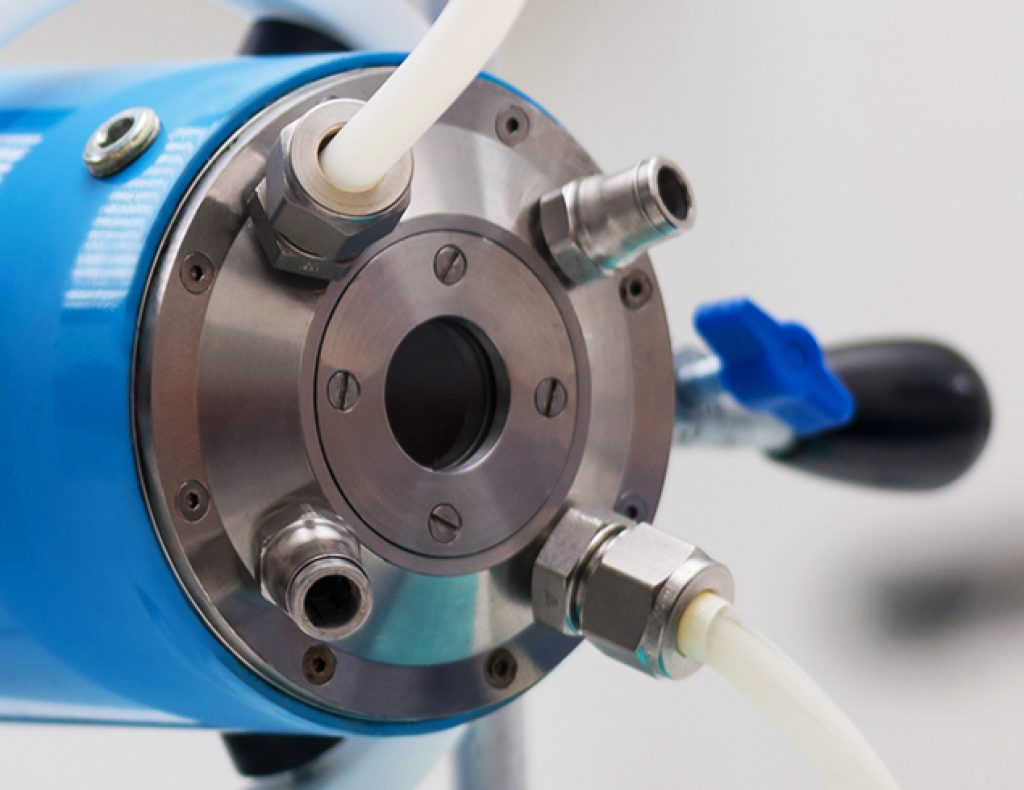

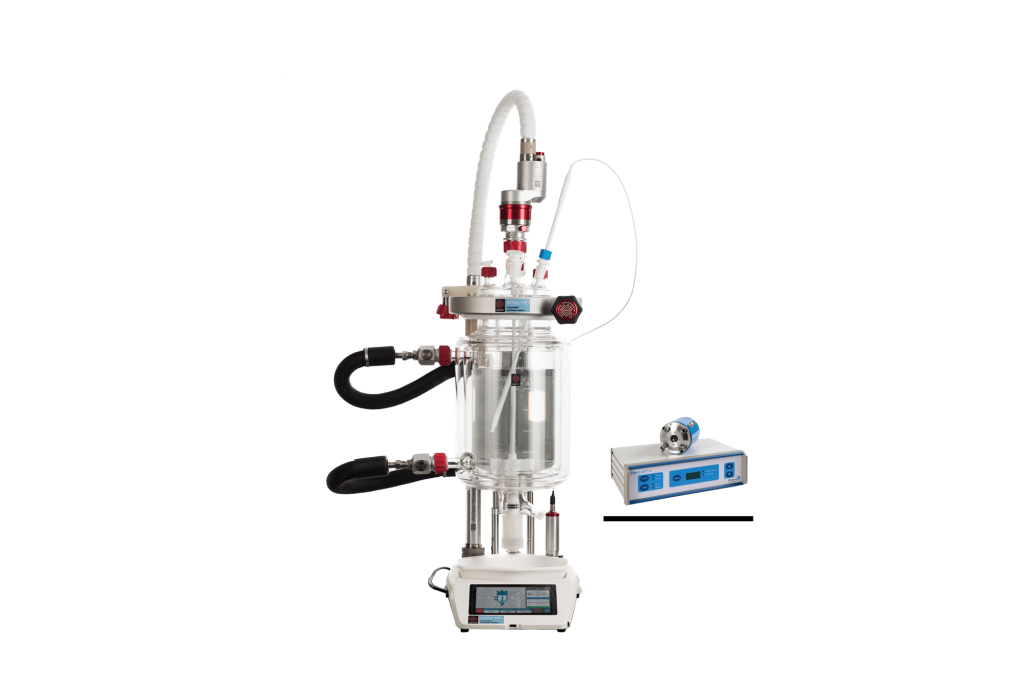

Sonocrystallization is the application of high-intensity, low-frequency ultrasound, resulting in acoustic cavitation of the solution. Controlled cavitation enables extremely precise control of nucleation, a random process that is both random and difficult to regulate with conventional techniques. The reactor combines the powerful Atlas HD Potassium with a proprietary ultrasonic flow cell, generator, and recirculating pump, which can help manage nucleation and growth.

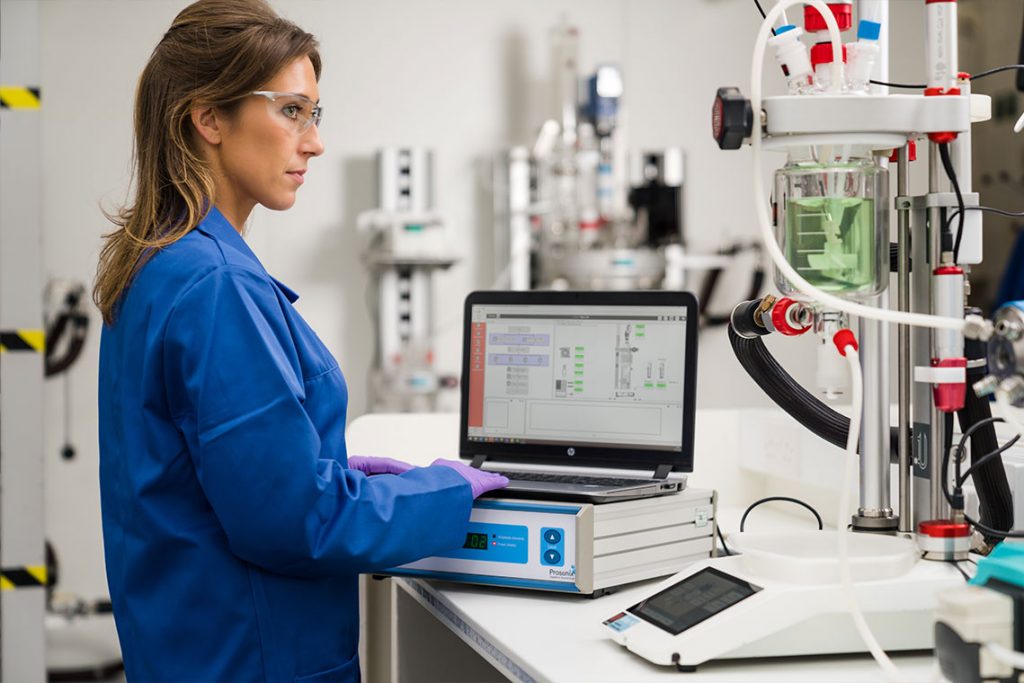

A chemist in the lab using Atlas HD Crystallization Reactor

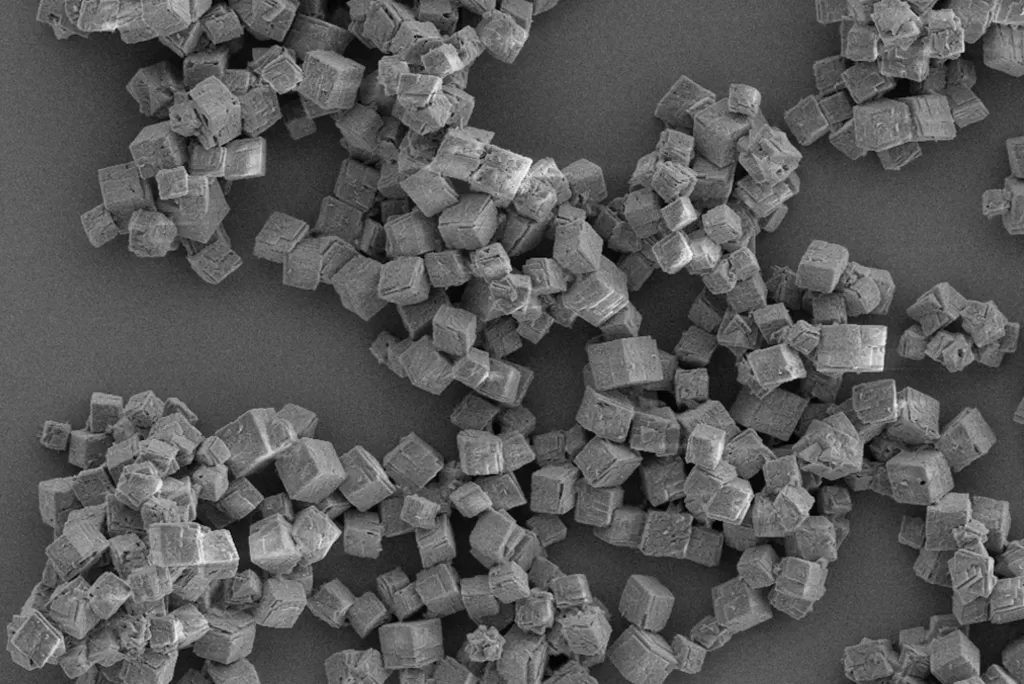

Crystals producted by Atlas HD crystallization system forming under a microscope

2. Exact control of cooling and anti-solvent crystallization

The reactor excels in managing both controlled cooling and anti-solvent crystallization. Using either the base unit or PC software, it employs sophisticated algorithms for precise temperature regulation, ensuring the process is maintained within the metastable zone. Anti-solvent crystallization is performed using the Atlas syringe pump, which offers precise dosing from 1 μL/min to 10 mL/min.

A chemist using Atlas HD Syringe Pump

3. Unrivalled automation

The reactor has an intuitive touchscreen base, delivering unmatched capability to define and monitor conditions over a broad range of working volumes. The touch screen allows you to change parameters such as stirring, heating, and dosing in real-time and displays all data graphically. Further automation can be provided using PC software.

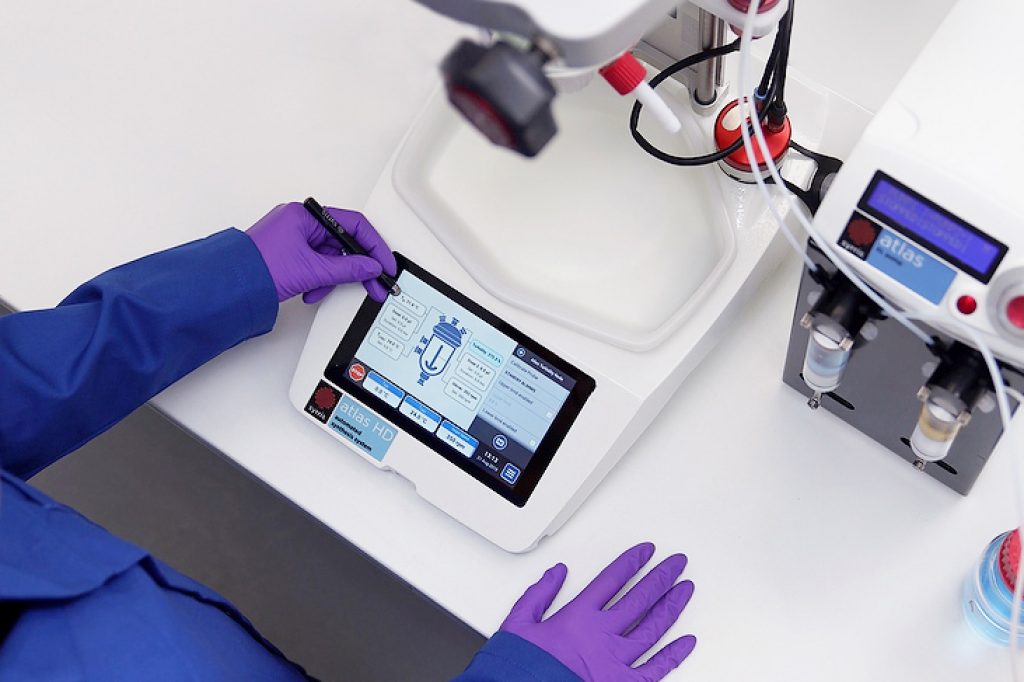

A chemist using Atlas HD touchscreen in the lab

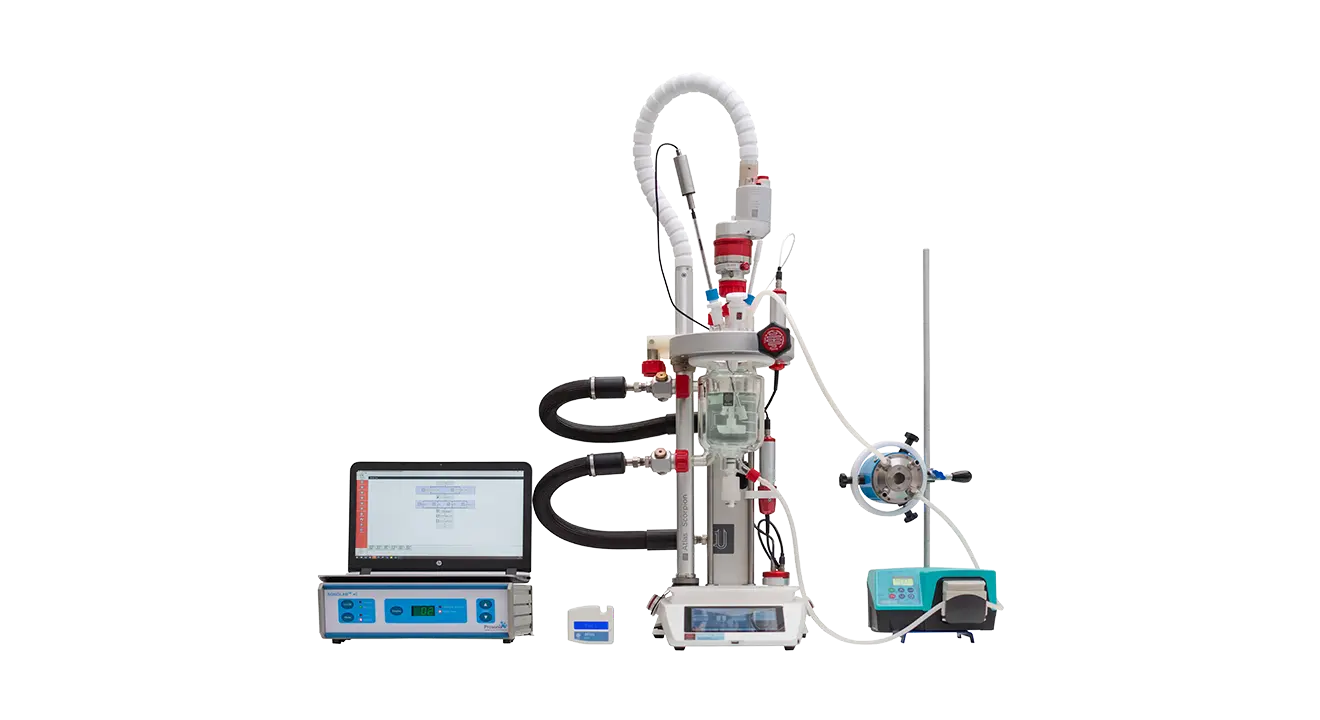

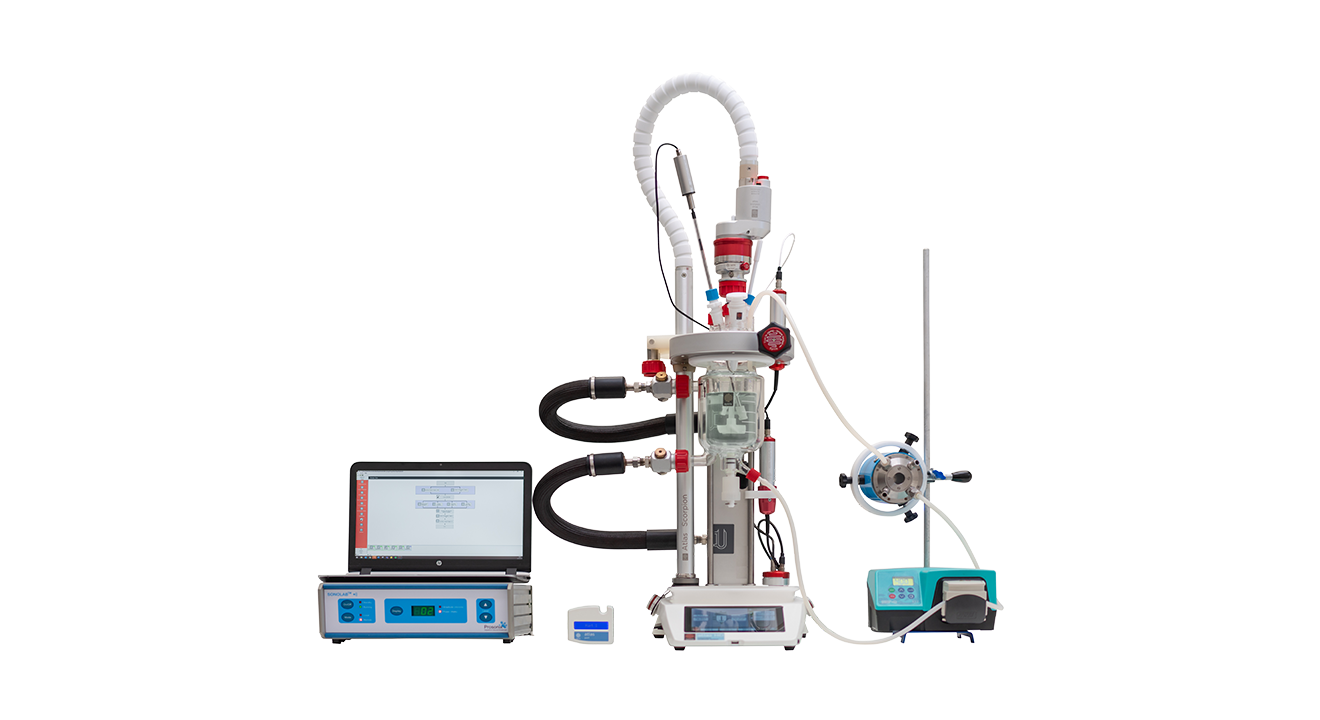

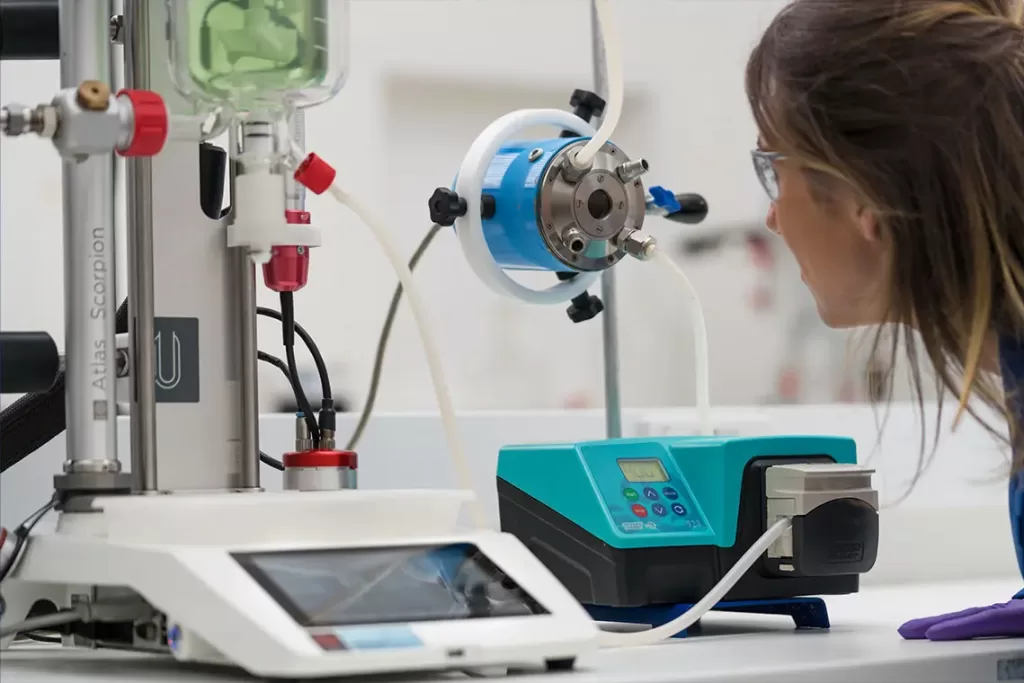

Atlas HD Crystallization Reactor Set Up in the lab

4. Narrow particle size distribution

Initiating nucleation using ultrasound offers reproducible crystallization.  The crystal growth can also be controlled with ultrasonic energy providing a very uniform and narrow particle size distribution.  Once crystals are formed, the system goes into sonomilling mode and varies the ultrasound’s intensity, allowing you to tailor the particle to your desired size.  Third-party particle size monitors can also be integrated to ensure that the platform provides all you need to master your crystallization process.

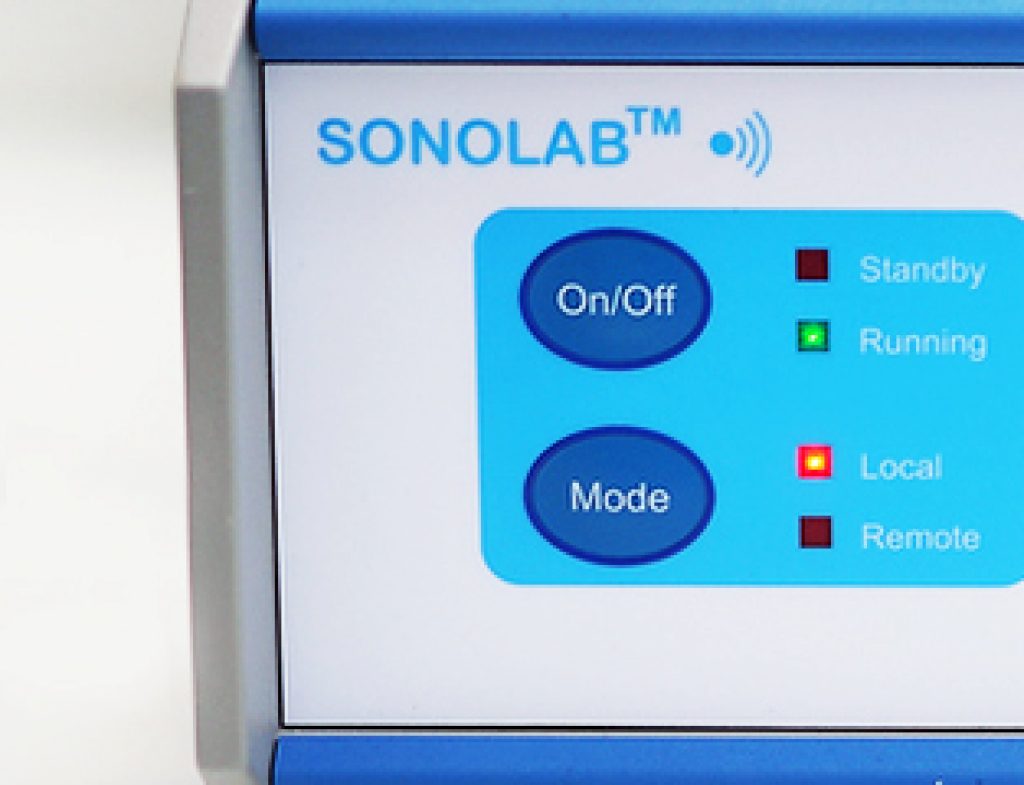

Atlas HD Crystallization System component: Prosonix Sonolab

What our customers say

Atlas HD reactor systems ensure each experiment is performed in exactly the same way every time.”

Scott Clunas, Process Chemist, TauRx Therapeutics, Aberdeen, UK
A hand drawn sketch of Syrris Atlas HD by Scott Clunas, Process Chemist, TauRx Therapeutics, Aberdeen, UK

Specifications

Vessel Volume Range 50 mL, 100 mL, 250 mL, 500 mL, 1 L, 2 L (DN80), 1 L, 2 L, and 5 L (DN150)
Vessel Shapes Torispherical, Conical, Round Bottom
Vessel Profiles Jacketed, Vacuum Jacketed

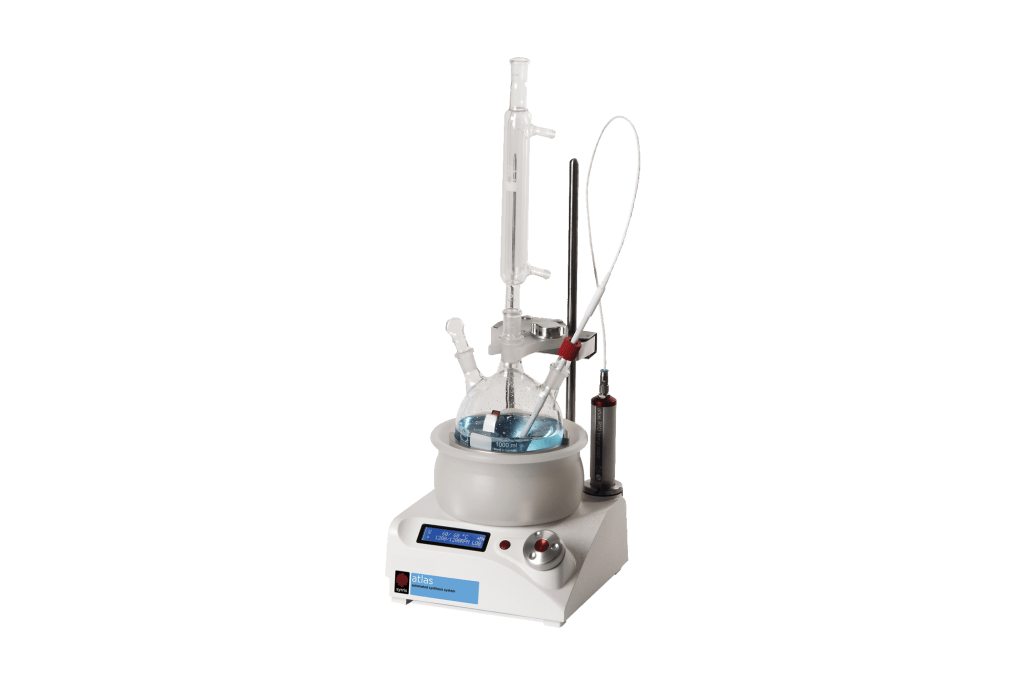

Other Vessel Types No (Round Bottom Flasks Available with Regular Atlas Base)
Temperature Range -90°C to 250°C (with suitable seal kit)
Stirring Options Scorpion Overhead Stirrer (up to 800rpm/11Ncm torque), High Speed Available, High Torque Available
Automation Yes – using Atlas PC Software
Modes of Operation Atlas HD Touch Screen Control, Atlas PC Software, Manual Operation
Sensor Options Temperature, pH, Pressure, Turbidity, In-situ FTIR, Other Sensors Available

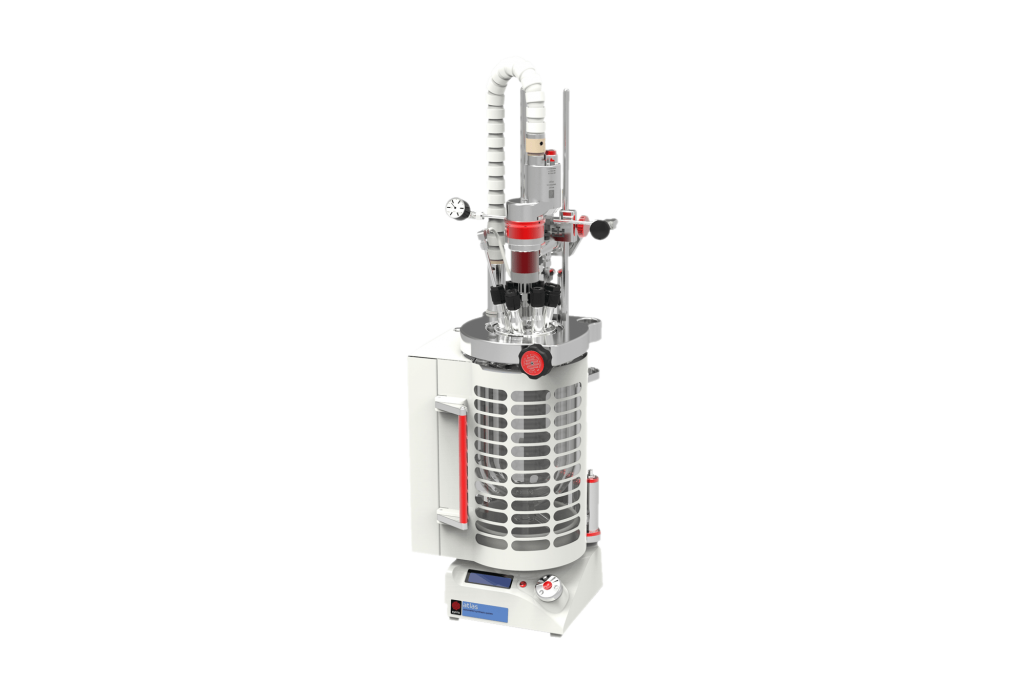

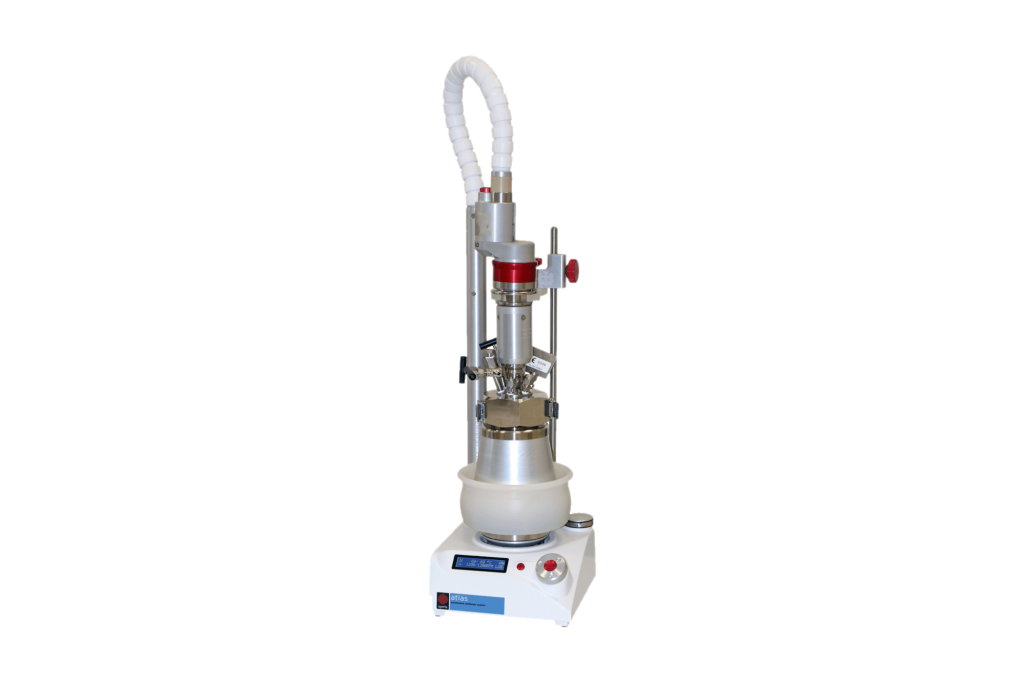

Pressure Range Vacuum (50mbar) to 0.5 Bar, See Atlas 200 Bar Pressure Systems for High Pressure up to 200 Bar, See Atlas 3 Bar Pressure Systems for High Pressure up to 3 Bar
Reaction Calorimetry Ability to Upgrade to Reaction Calorimetry, See Atlas HD Calorimeter
Reagent Addition and Sampling Manual Dosing, Automated Dosing (Volumetric), Automated Dosing (Gravimetric), Sampling of Liquids, Full Gas Control, Atlas Syringe Pump Range

More Atlas HD Modules

Syrris Atlas HD Crystallization System component close-up
A photograph of the Atlas Scorpion Overhead Stirrer Motor

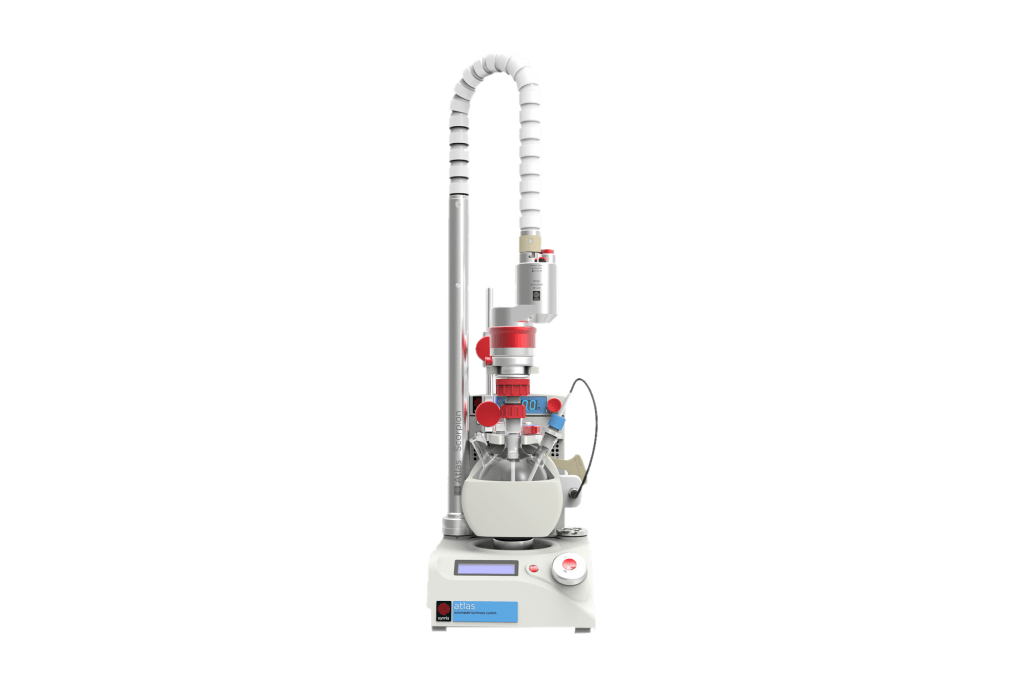

Atlas HD Cryo System Ice

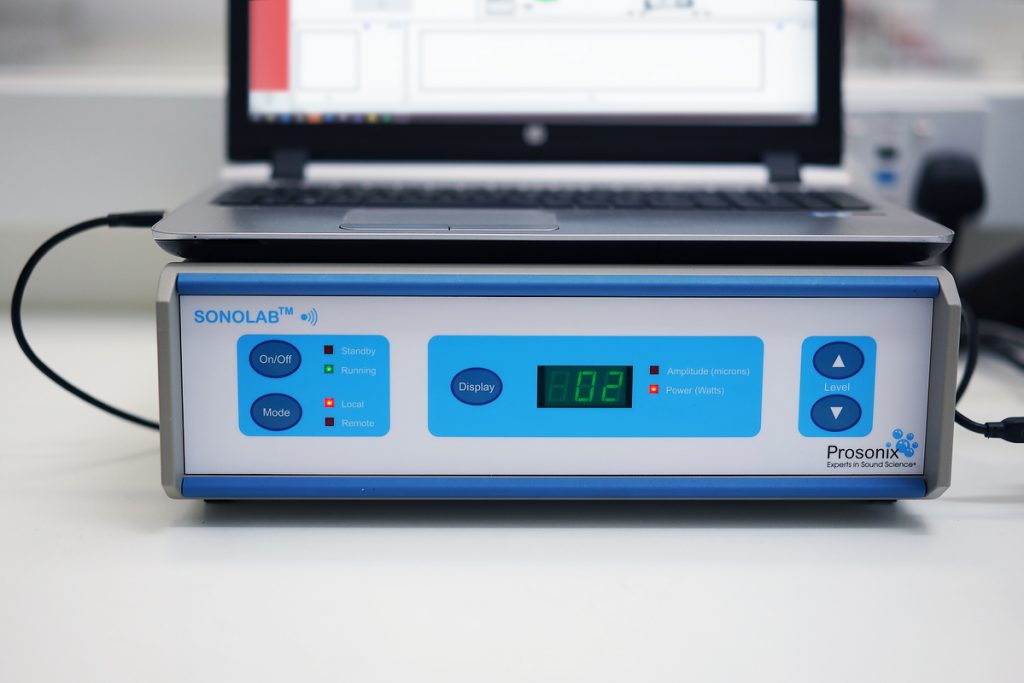

Close-up of Atlas HD Crystallization Reactor's Prosonix Sonolab

Atlas HD Crystallization Reactor Key Features

The reactor is state-of-the-art and designed for advanced chemical processes. This customizable equipment features a 100L stainless steel tank, high borosilicate glass components, and a jacketed design for precise temperature control.

Material: High-quality stainless steel and PTFE, suitable for various chemical applications.

Design: Includes a motor, air filter, condenser, and insulation jacket for efficient operation.

Components: Equipped with a sophisticated controller for precise control, a chiller for temperature regulation, and various accessories for enhanced functionality.

Package: Comprehensive packages available, meeting different industry requirements.

Ease of Use: Easy-to-clean design with accessible parts and user-friendly interface.

Customization: Tailored options to meet specific needs, with additional accessories available.

Customer Support: Backed by extensive support from our company, including contact options for queries, reviews, and purchasing advice.

The reactor is designed to meet standard industry requirements and can be purchased as part of a package or as individual items, depending on your needs. Contact us to review features, components, and pricing to meet your specific laboratory requirements.
