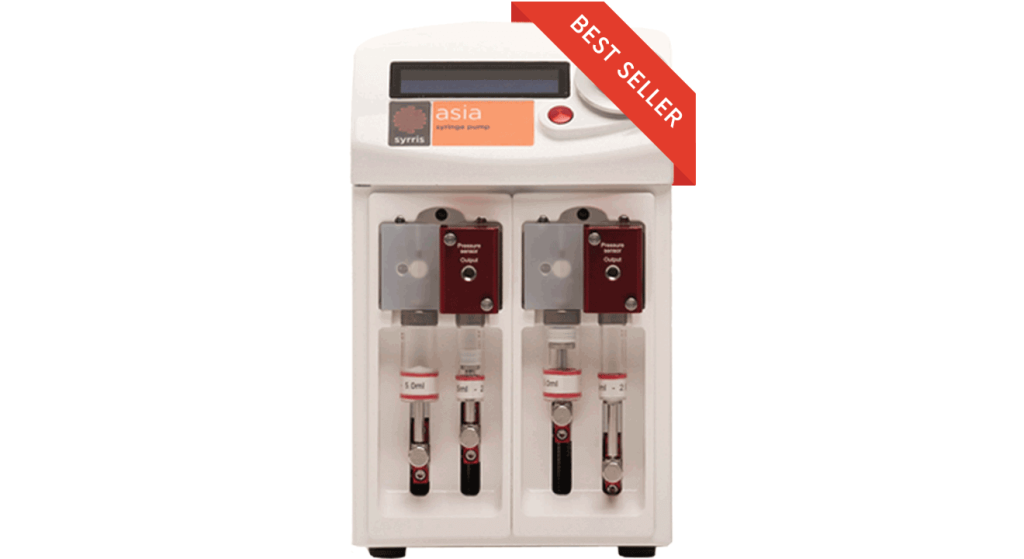

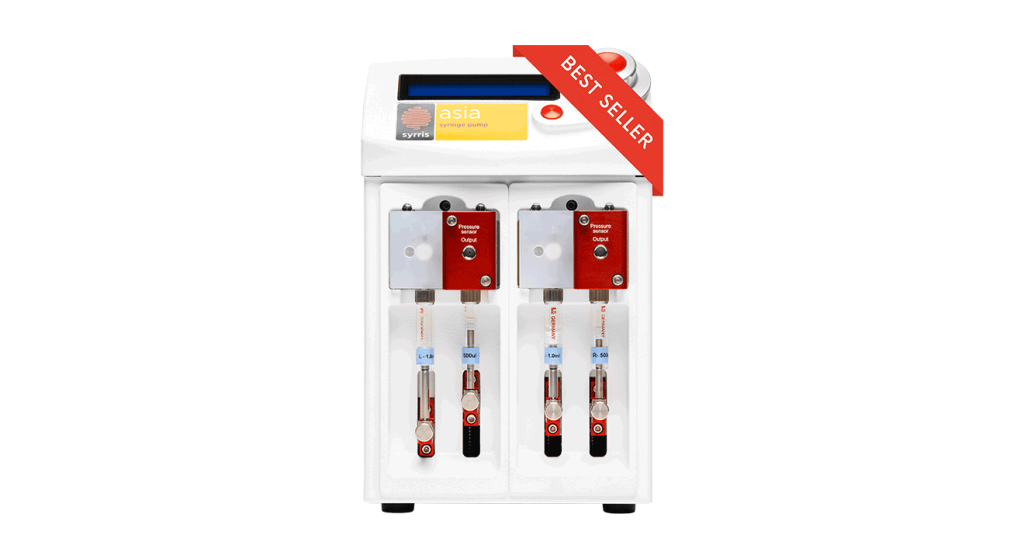

Asia Syringe Pump

Designed specifically for flow chemistry the Asia Syringe provides an ultra-smooth flow rate of 1.0 μL to 10 mL/min and pressures up to 20 bar (300psi), and is constructed from extremely chemically resistant materials.

Part of the Asia range

Designed specifically for flow chemistry the Asia Syringe provides an ultra-smooth flow rate of 1.0 μL to 10 mL/min and pressures up to 20 bar (300psi), and is constructed from extremely chemically resistant materials.

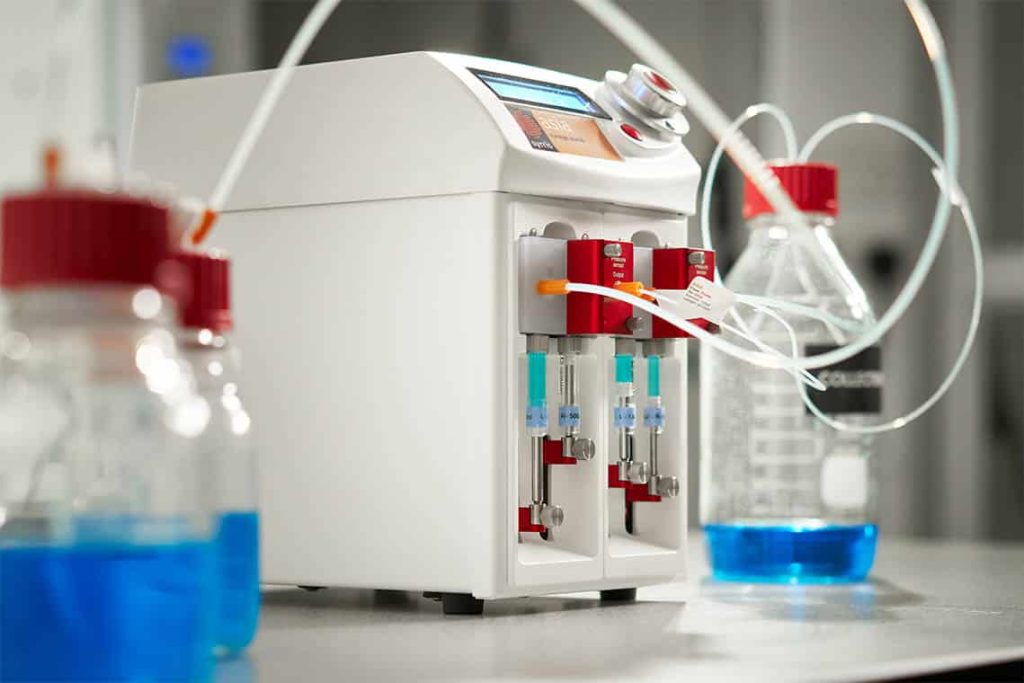

The Asia Syringe Pump offers two independent flow channels each with an integrated pressure sensor and is controlled by the intuitive front panel’s twist and click control knob with screen (enabling it to be used with your existing lab equipment) or by the Asia Manager PC software.

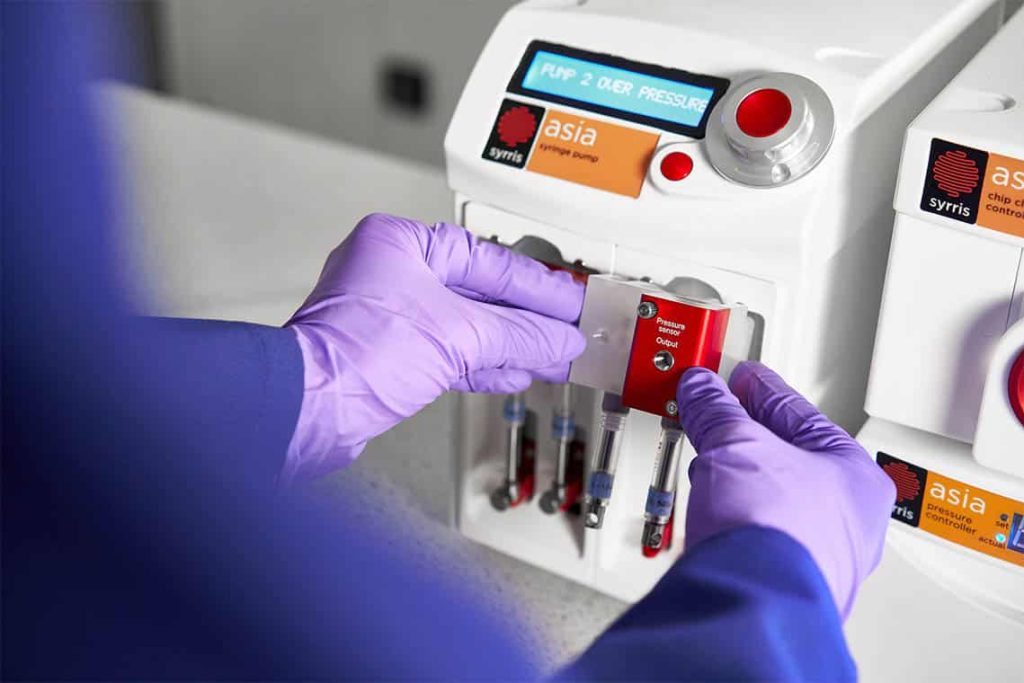

The Asia Syringe Pump offers ultimate ease of use. The valves, pressure sensors, and syringes can all be unclipped / unscrewed in seconds without the need for tools.

Pump volatile, viscous, and corrosive liquids

The Asia Syringe Pump’s patented design enables it to smoothly pump solvents not possible with High-Performance Liquid Chromatography (HPLC)-style pumps, such as volatile solvents (e.g. DCM and ether), viscous liquids, and corrosive liquids. This ability enables chemists to perform a wider range of flow chemistries with greater confidence and reliability in results.

Flexible control modes

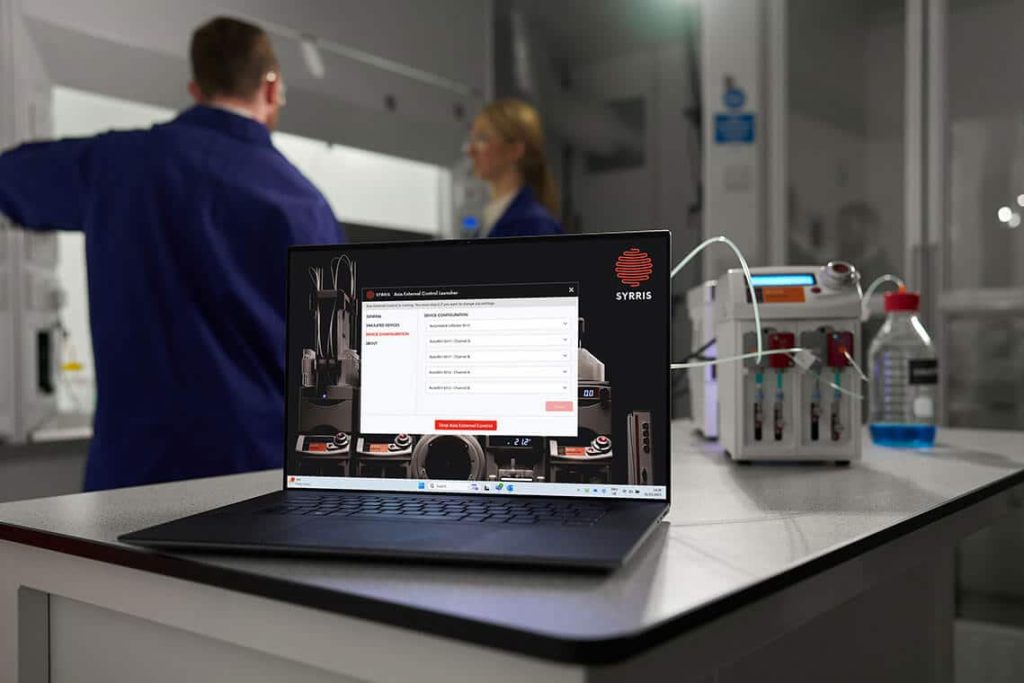

The Asia Syringe Pump can be operated in standalone mode using the click wheel control and screen, or controlled by the Asia PC Manager Software; either mode offers quick and easy flow rate control.

When used as part of a larger flow chemistry system, the Asia Syringe Pump accurately controls and runs complex flow chemistry experiments with the click of a button.

The Asia Syringe Pump’s standalone control enables it to be used with your existing RS232-enabled equipment, and its lightweight design and small footprint allow chemists to easily move it around the lab.

The Asia Syringe pump is an ultra smooth and extremely chemistry resistant syringe pump from Syrris. It can be used in isolation or as part of an Asia system. It is designed specifically for flow chemistry and features patented technology.

Benefits of the Asia Syringe Pump

  • Flexible: The Asia Syringe Pump offers two independent flow channels (each with integrated pressure sensing)
  • Extremely smooth flow rate: Incredibly smooth flow rate is provided by each channel
  • Wide pressure range: Operating pressure of 20 bar (300psi)
  • Safe: PTFE pressure sensor on each channel with automatic overpressure stop
  • No tools required: Replace valves, syringes and pressure sensors without the need for tools
  • Easy to use on its own: Twist and click control knob and large LCD display
  • Wide flow rate range: 1.0 μL to 10 mL/min
  • Intelligent: PC Software enables quick and easy control of flow chemistry process
  • Compact: The Asia Syringe Pump is just 16cm (6.3″) wide
  • Excellent chemical compatibility: PTFE (and other fluorinated polymers) and glass only

Asia syringe volumes and flow rates

  • Asia Yellow Syringes (50 µL / 100 µL): 1.0 µL to 250 µL/min)
  • Asia Green Syringes (250 µL / 500 µL): 5.0 µL to 1.25 mL/min)
  • Asia Blue Syringes (500 µL / 1 mL): 10 µL to 2.5 mL/min)
  • Asia Red Syringes (2.5 mL / 5 mL): 50 µL to 10 mL/min

Systems

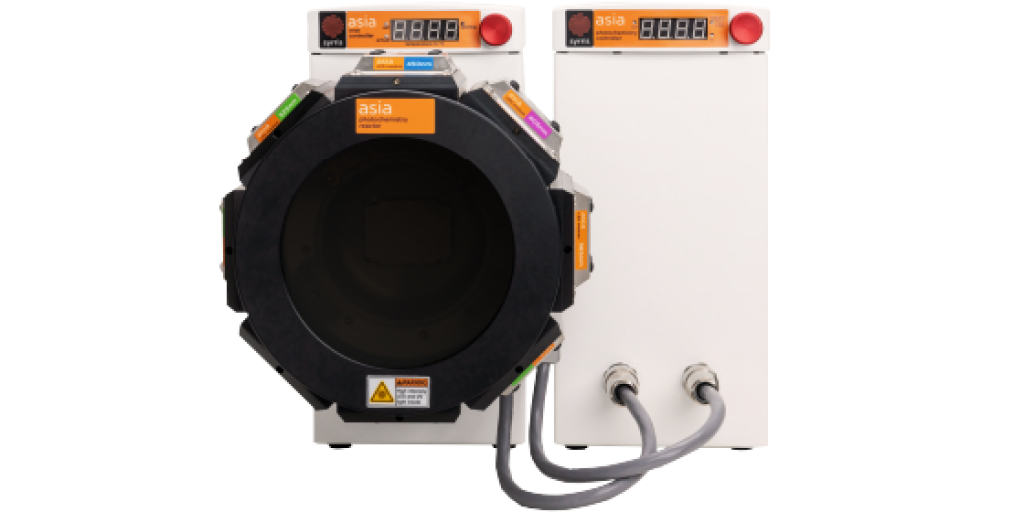

  • Asia Photochemistry System

    Makes novel continuous photochemistry applications accessible without the limitations of traditional batch requirements.

    View system details
  • Asia Flow Chemistry Syringe Pump

    Designed specifically for flow chemistry, the ultra-smooth Asia Flow Chemistry Syringe Pump offers ultra-smooth flow from 1.0 μL to 10 mL/min and can be used in standalone mode or with PC control and is perfect for all your lab's flow chemistry.

    View system details

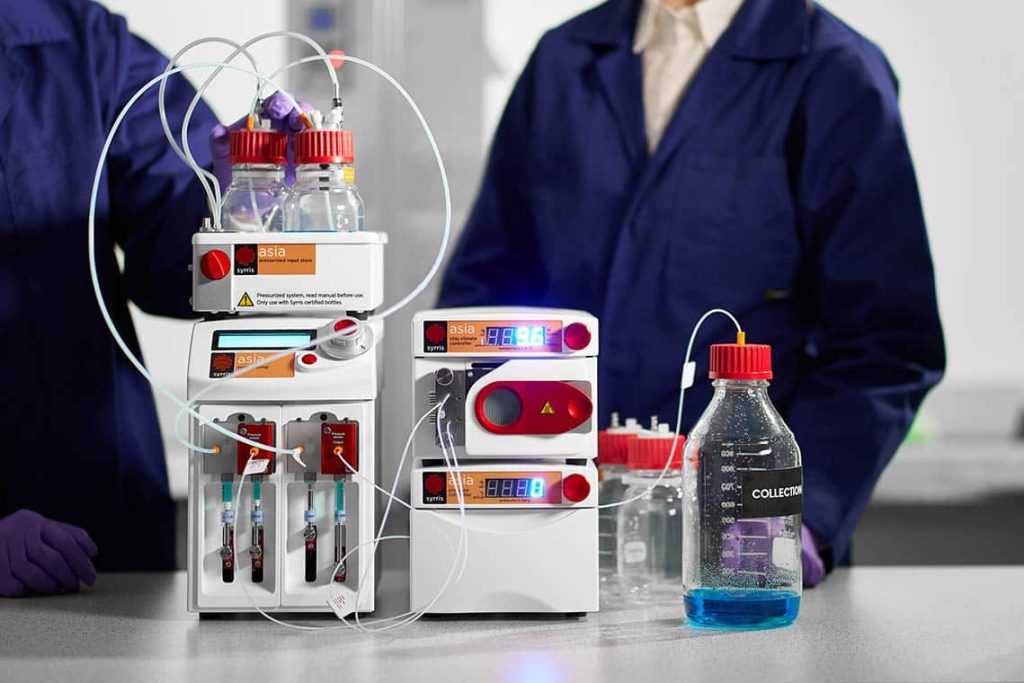

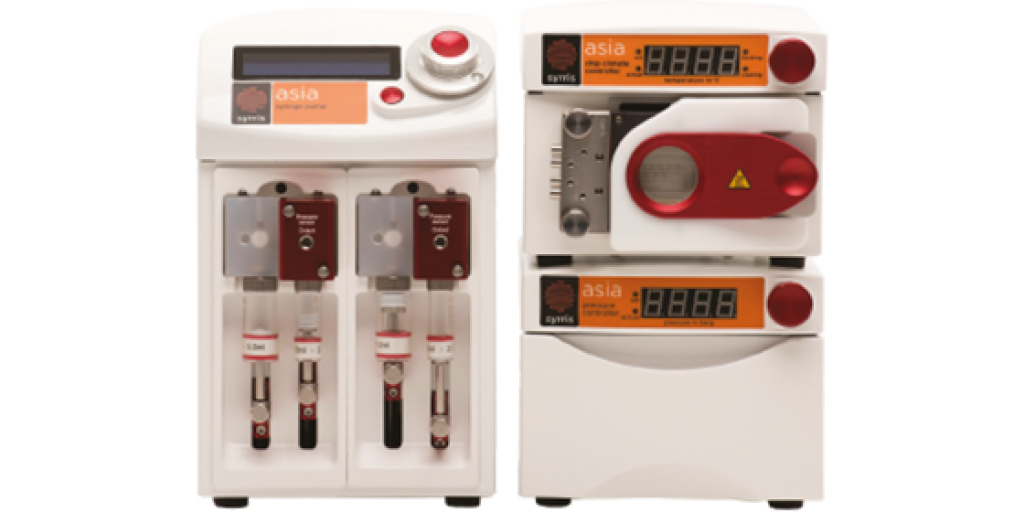

  • Asia Starter Flow Chemistry System

    Ideal for chemists eager to begin using flow chemistry as well as for academics looking to introduce flow chemistry to their group.

    View system details
  • Asia Starter Flow Chemistry System

    Ideal for chemists eager to begin using flow chemistry as well as for academics looking to introduce flow chemistry to their group.

    View system details

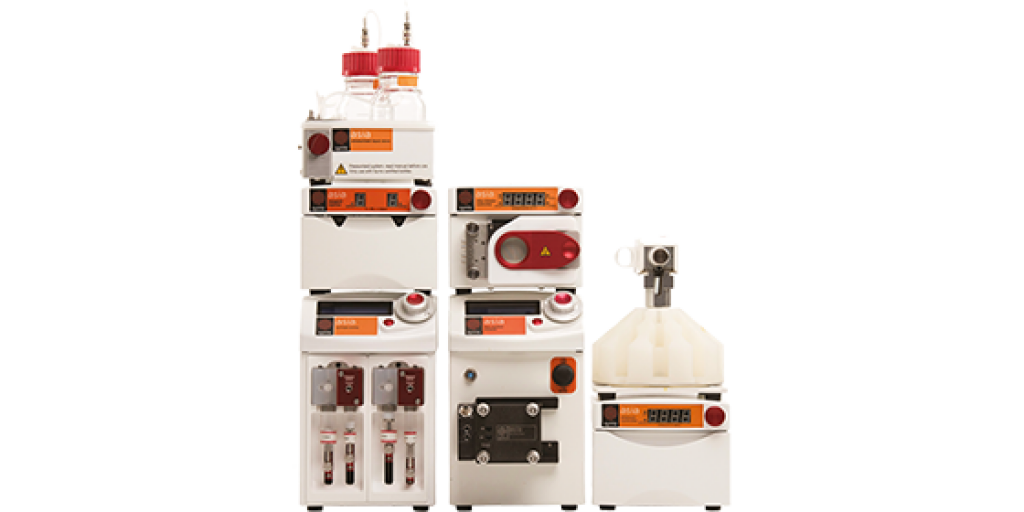

  • Asia Electrochemistry Flow Chemistry System

    For easy access to electrochemical reactions in continuous flow, enabling selectivity and transformations impossible by other techniques.

    View system details

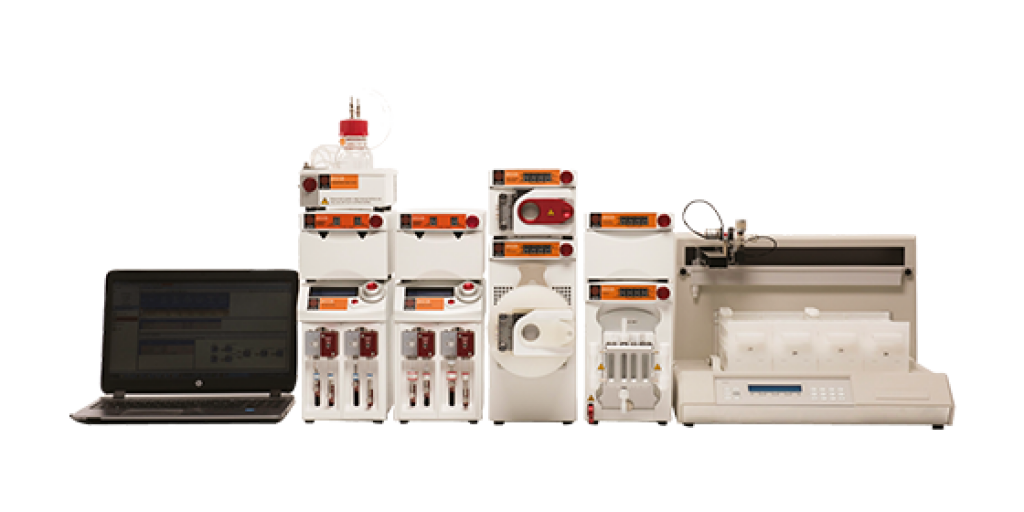

  • Asia Cold Flow Chemistry System

    Enables safe chemical reactions under cryogenic conditions (e.g. exothermic organometallic reactions).

    View system details

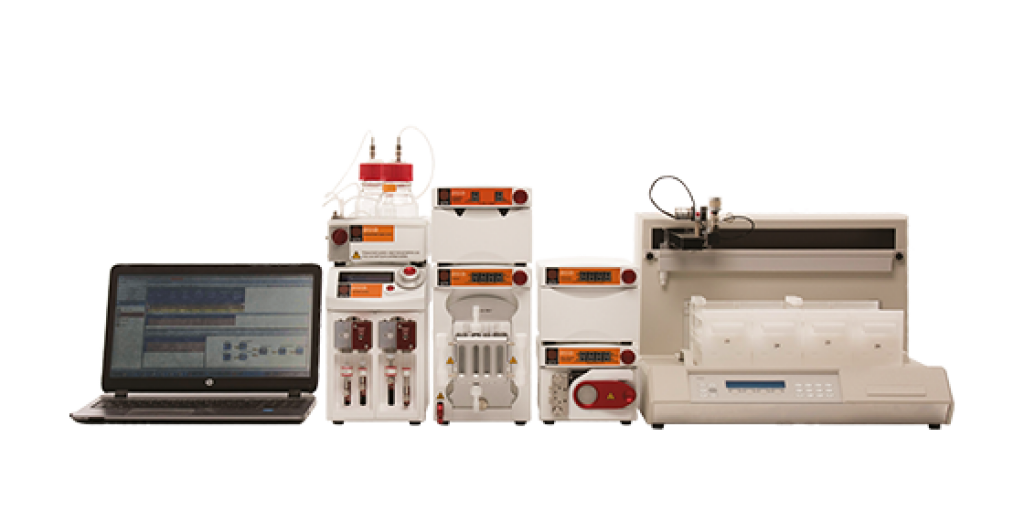

  • Asia Discovery Flow Chemistry System

    Capable of running flow experiments that require limited quantities of starting material or expensive reagents.

    View system details

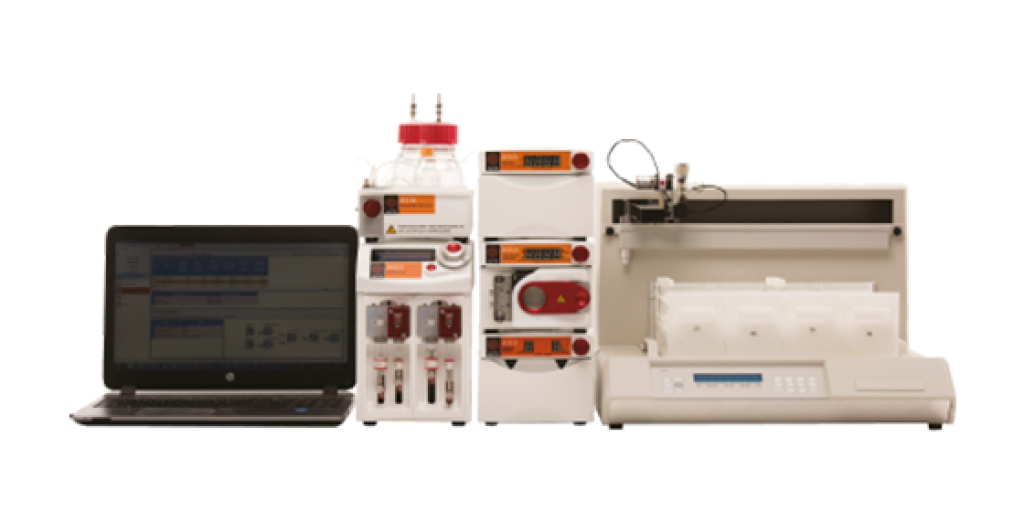

  • Asia Process Optimization Flow Chemistry System

    Ideal for converting a batch chemistry reaction to a flow chemistry process and varying parameters for reaction optimization.

    View system details

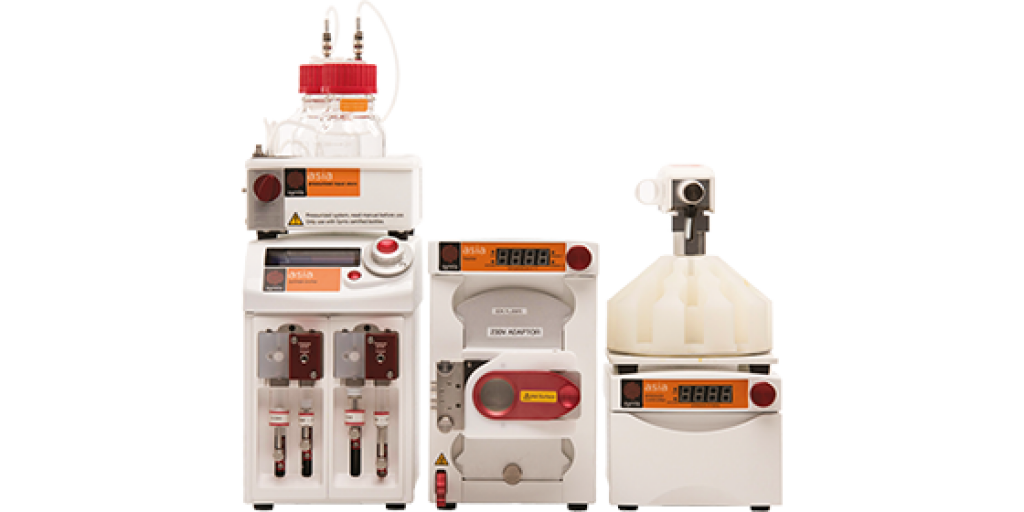

  • Asia Nanoparticle Flow Chemistry System

    Performs nanoparticle synthesis in flow with fast and reproducible mixing, excellent heat transfer and accurate temperature control.

    View system details

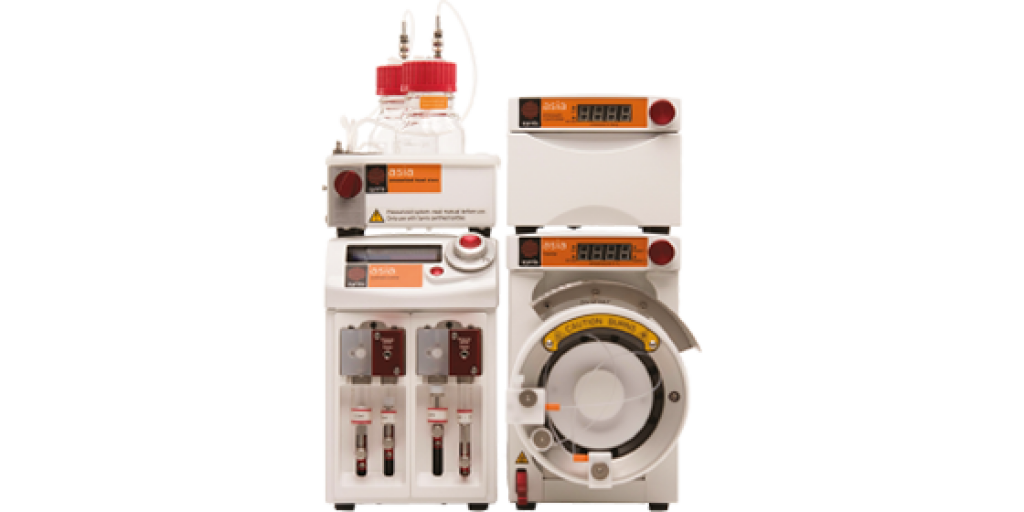

  • Asia Scale-Up Flow Chemistry System

    For easy scale-up of reactions from milligram to multi-gram quantities using flow chemistry.

    View system details

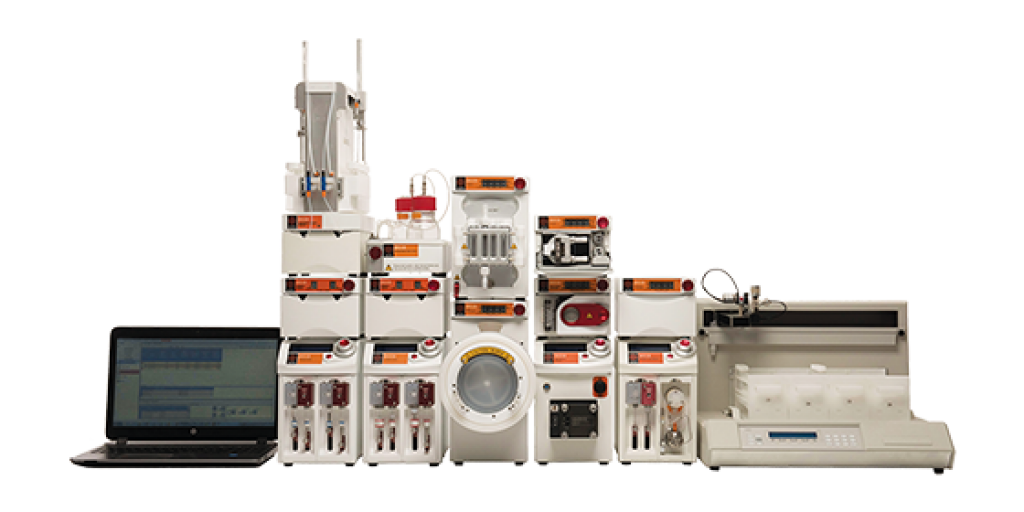

  • Asia Premium Flow Chemistry System
