Pre-configured System

Asia Starter Flow Chemistry System

Ideal for chemists eager to begin using flow chemistry as well as for academics looking to introduce flow chemistry to their group.

View our suitable applications list

Applications

This product is suitable for the following applications.

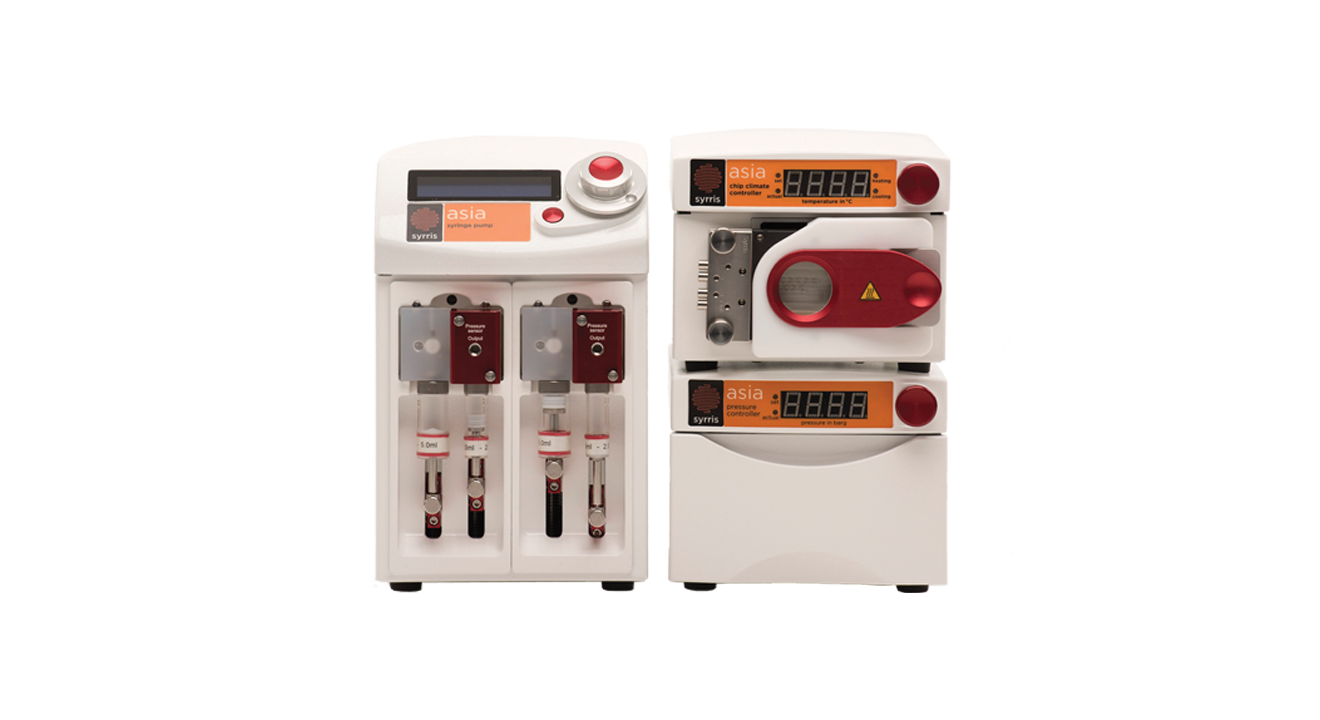

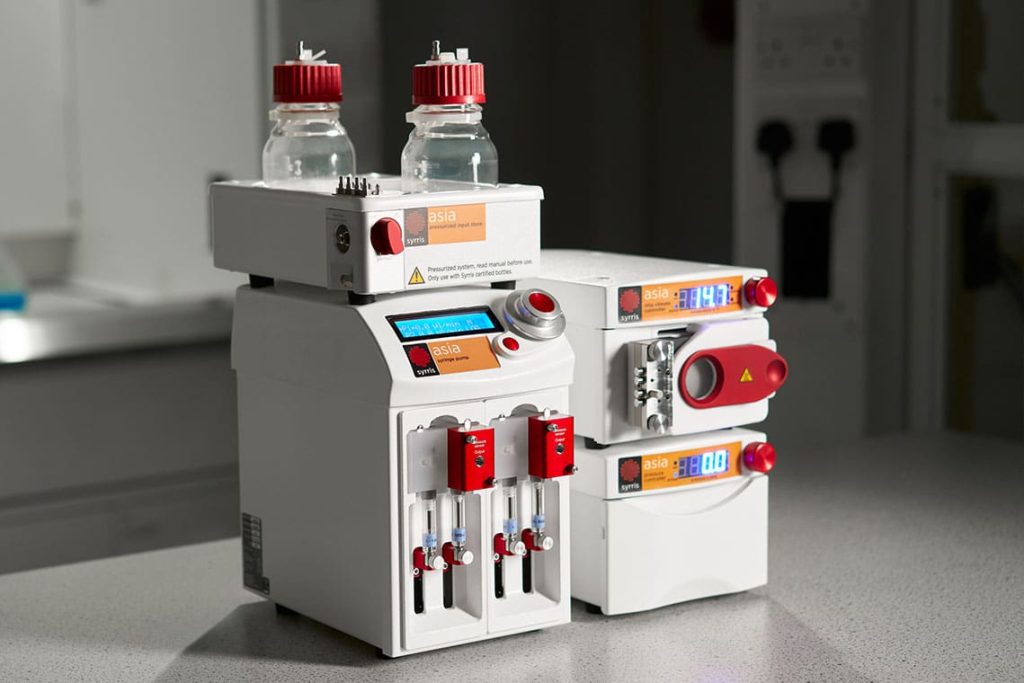

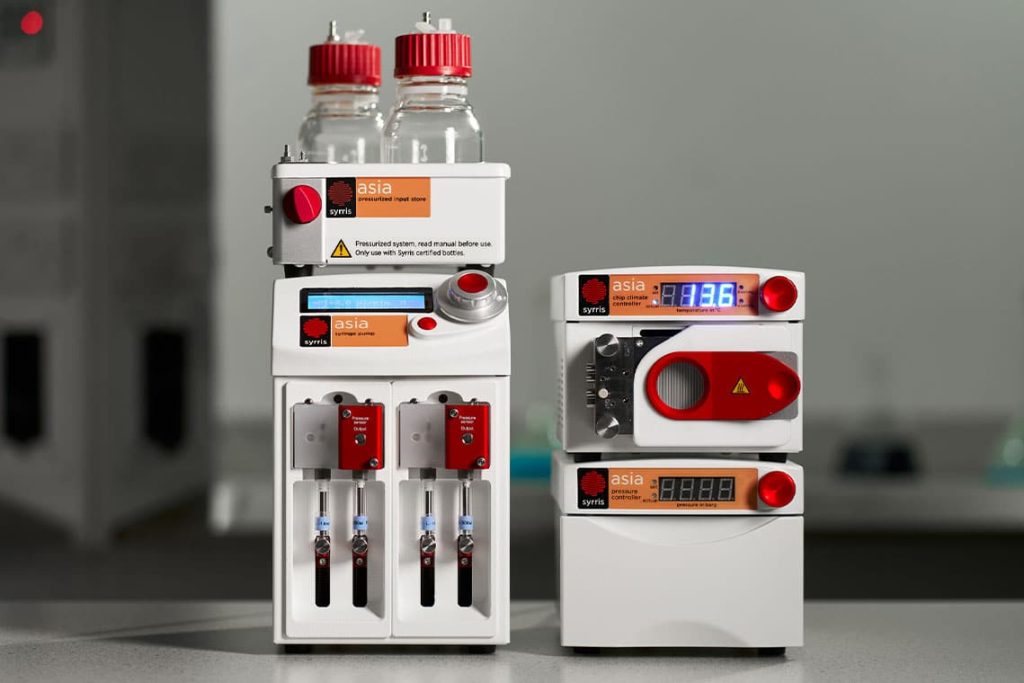

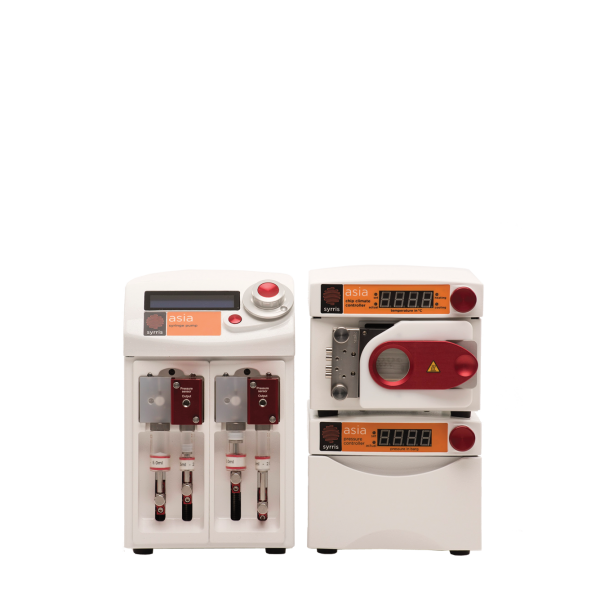

The easy-to-use and affordable systems contain all essential flow system parts: an Asia Syringe Pump, an Asia Chip Climate Controller, a glass microreactor, and an Asia Pressure Controller.  The systems are future-proof and can be seamlessly upgraded with additional features and modules as the user experience with flow chemistry grows.

All Asia systems are available as either regular or advanced configurations to suit different requirements and budgets, and all systems include the Asia Syringe Pump as a common module.

Syrris Asia Chip Climate Controller close-up
Syrris Asia Syringe Pump close-up

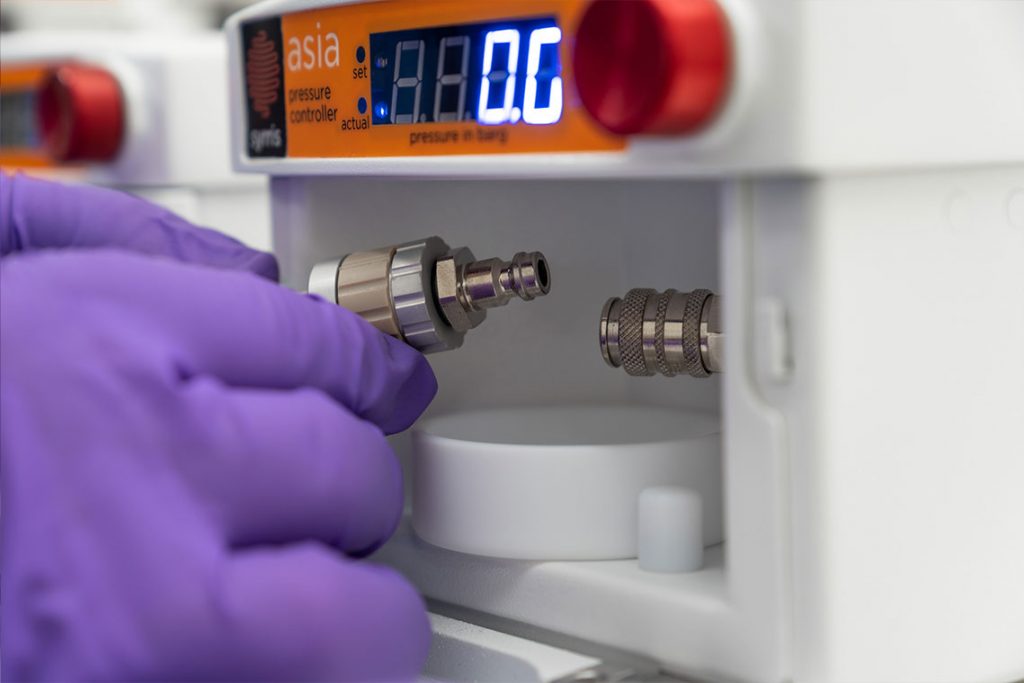

Syrris Asia Pressure Controller unattached

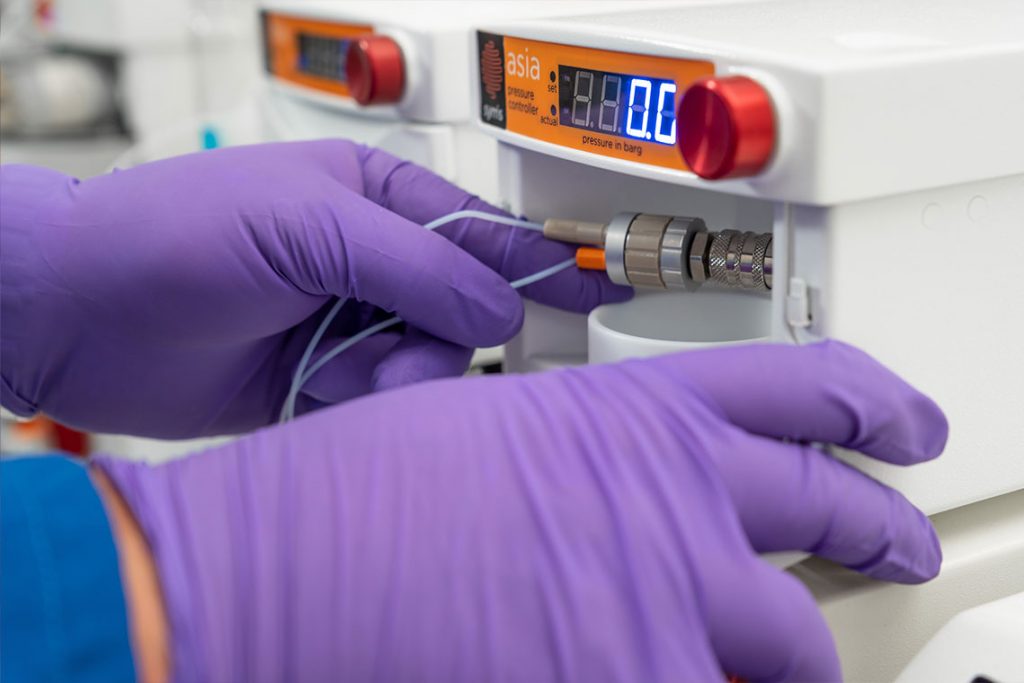

Syrris Asia Pressure Controller attached

Specifications

Regular
Advanced
Flow rate
1 μL/min to 10 mL/min*
Pressure
0 to 20 bar
0 to 20 bar**
System temperature
-15 °C to +150 °C
-15 °C to +250 °C
Pump channels
2
Chip reactors
Tube reactors
Column reactors
Product collection
manual
Pressurized inputs
Injection valves
2

*dependant on syringe size

**10 bar when using fluoropolymer tube reactors

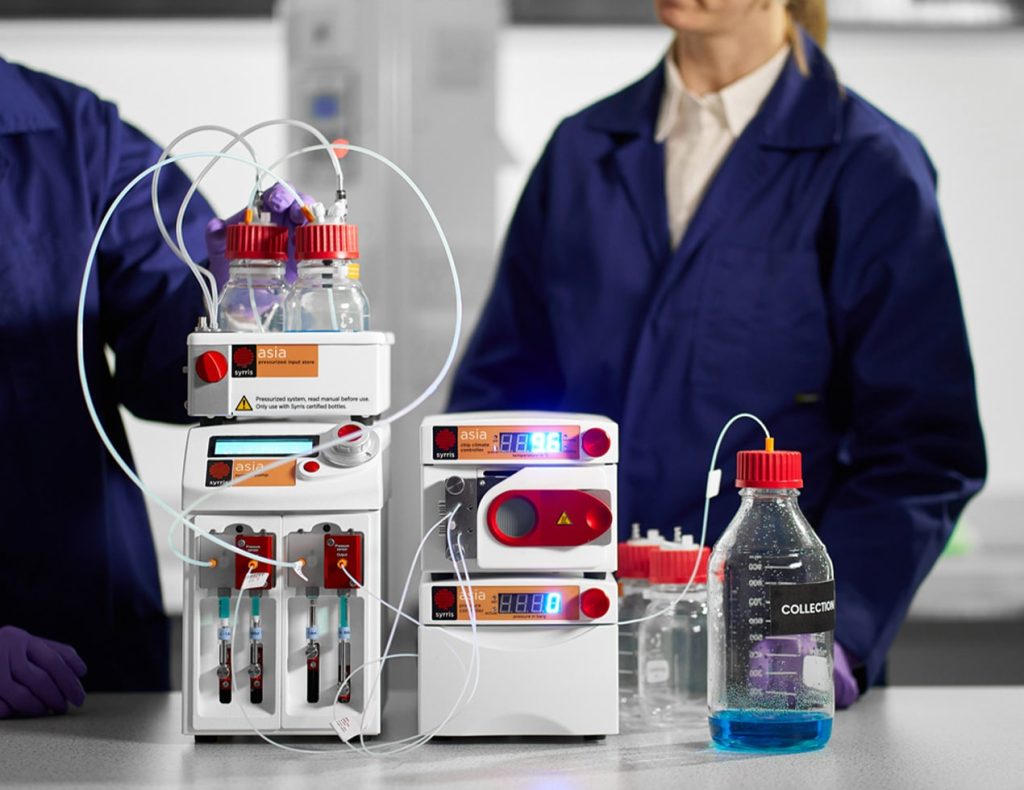

Syrris Asia Syringe Pump close-up chemist in lab
Syrris Asia Syringe Pump close-up
Syrris Asia Microreactor close-up
Syrris Asia Pressure Controller unattached close-up

Modules

  1. Pumping

    • Asia Syringe Pump

      (included)

      Available in
      1 included, with option to add more

      Designed specifically for flow chemistry the Asia Syringe provides an ultra-smooth flow rate of 1.0 μL to 10 mL/min and […]

      View module details
    • Asia Pressurized Input Store

      (optional)

      The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x […]

      View module details
  2. Flow Reactor

    • Asia Chip Climate Controller

      (included)

      The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC […]

      View module details
    • Asia Heater

      (optional)

      The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]

      View module details
  3. Post Reaction Modules

    • Asia Pressure Controller

      (included)

      The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 […]

      View module details
  4. Reagent Injection

    • Asia Reagent Injector

      (optional)

      The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, […]

      View module details
  5. Sample Collection

    • Asia Product Collector

      (optional)

      The Asia Product Collector allows convenient collection of samples into a range of vessel sizes. The automated 3-way valve allows […]

      View module details
  6. Optional modules

    • Asia Pressurized Input Store

      (optional)

      The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x […]

      View module details
    • Asia Reagent Injector

      (optional)

      The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, […]

      View module details
    • Asia Heater

      (optional)

      The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]

      View module details
    • Asia Product Collector

      (optional)

      The Asia Product Collector allows convenient collection of samples into a range of vessel sizes. The automated 3-way valve allows […]

      View module details
