Atlas Flasks and Vials

A range of essential tools for small scale chemistry in round bottom flasks and vials, providing fine control and enabling chemists to be more productive.

At a glance

The Atlas Flasks and Vials range of tools provide fine control for round-bottomed flasks, vials, parallel chemistry, Atlas Lithium, Atlas Sodium, Atlas Orbit, and the Stacking Dry Bath. All modules and systems for small-scale chemistry are designed to be compatible with existing hardware in a common laboratory. The Stacking Dry Bath and Orbit systems fit all common hotplate sizes.

Providing fine control for round-bottomed flasks, vials, and parallel chemistry, Atlas Lithium, Atlas Sodium, Atlas Orbit, and the Stacking Dry Bath, these essential tools enable chemists to be more productive.



  • Compatible with your lab

1. Accurate reaction temperature for flasks

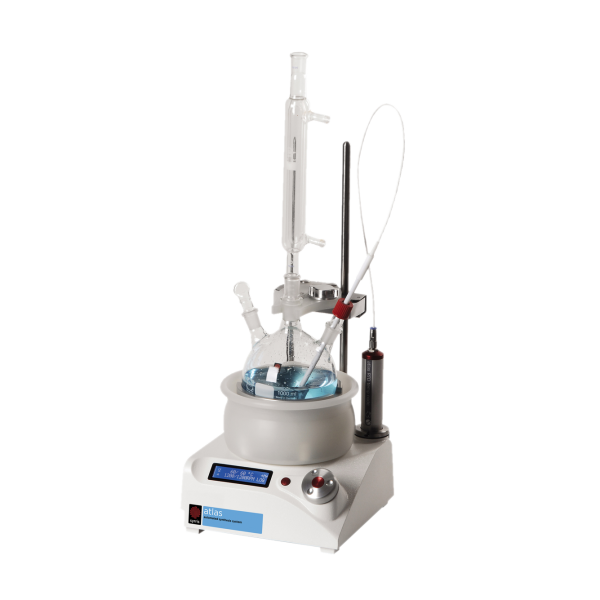

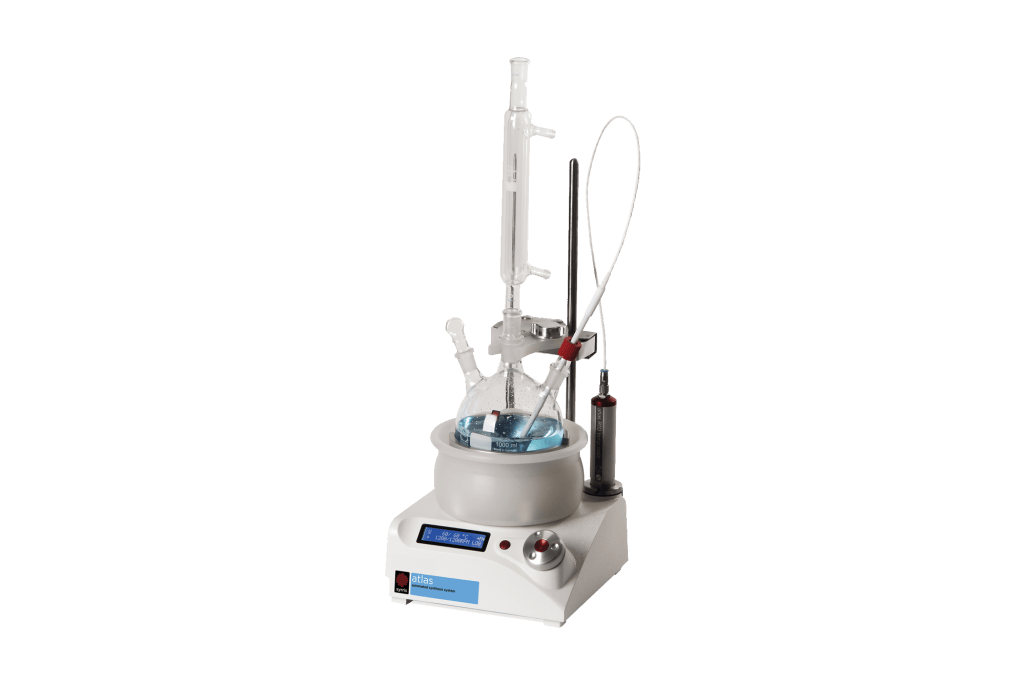

The Atlas Lithium automates reactions in round bottomed flasks or vials. With a Magnetic Stirrer, Hotplate and Stacking Dry Bath, Lithium can heat and stir round bottom flasks from 50 mL to 1 L.  The system provides exact control of reaction temperature using PTFE-coated reaction temperature probes.  Atlas Lithium can heat flasks using the standard Hotplate and Hotter Hotplate.  The Atlas Hot and Cold Plate can be interchanged to heat and cool flasks and vials from -40 °C to +160 °C.



Atlas Hotplate

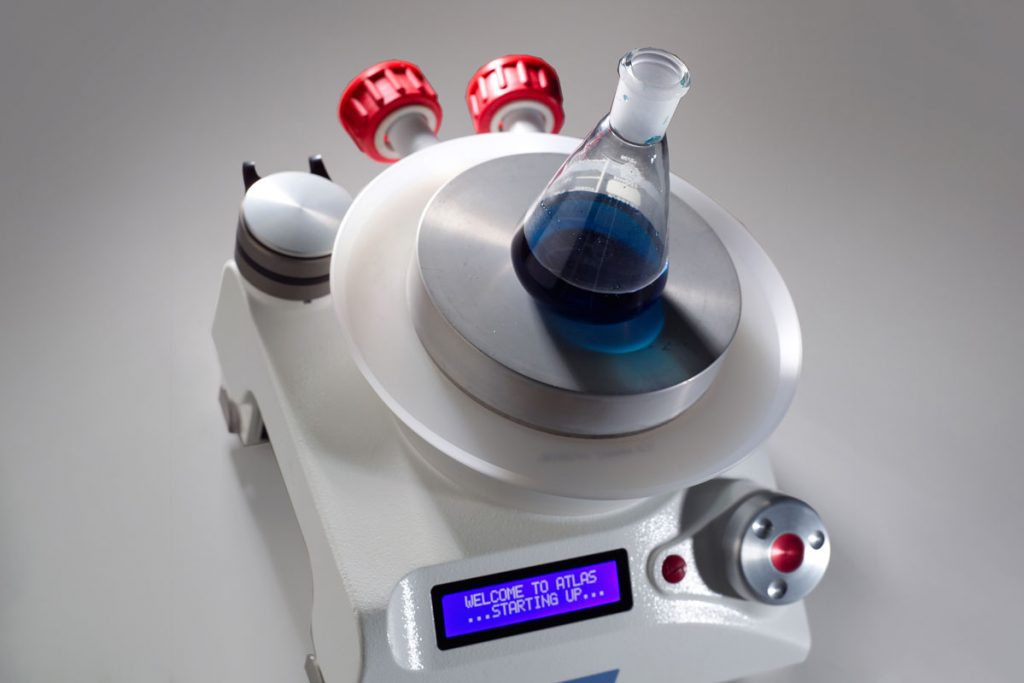

Syrris Atlas Conical Coldplate

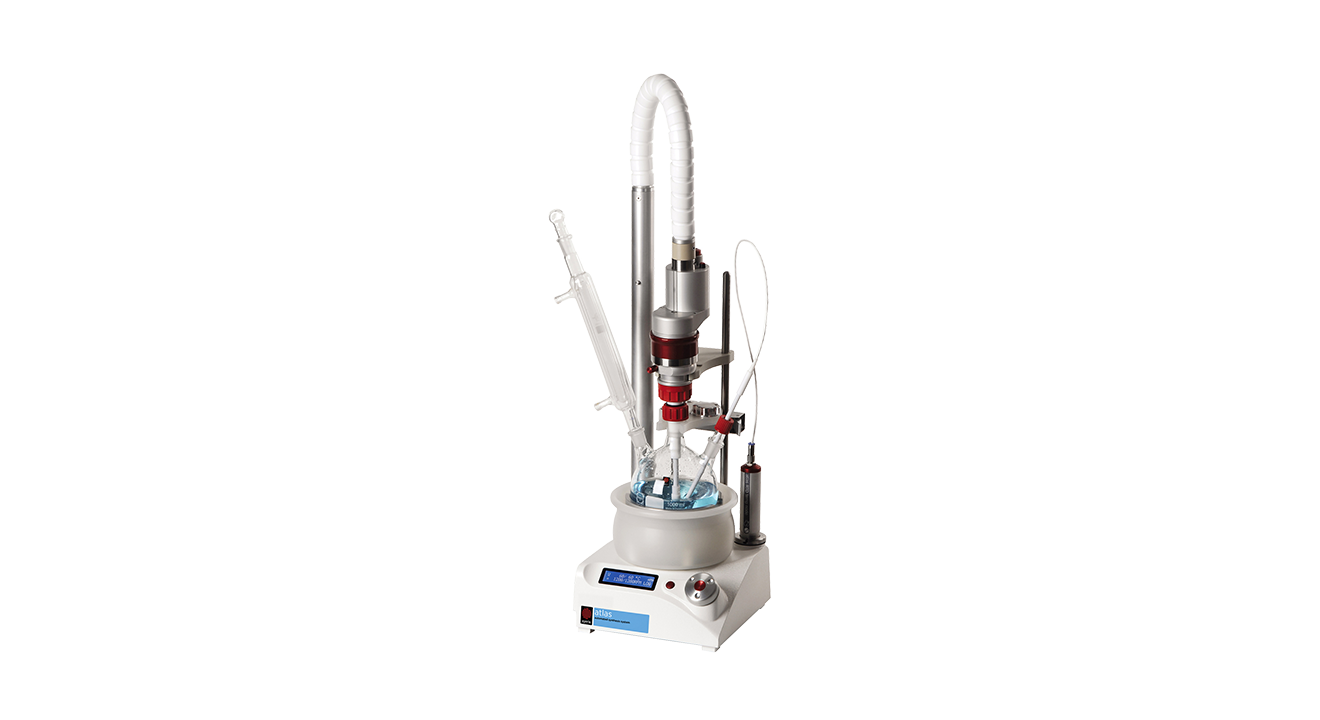

2. Multiple stirring options

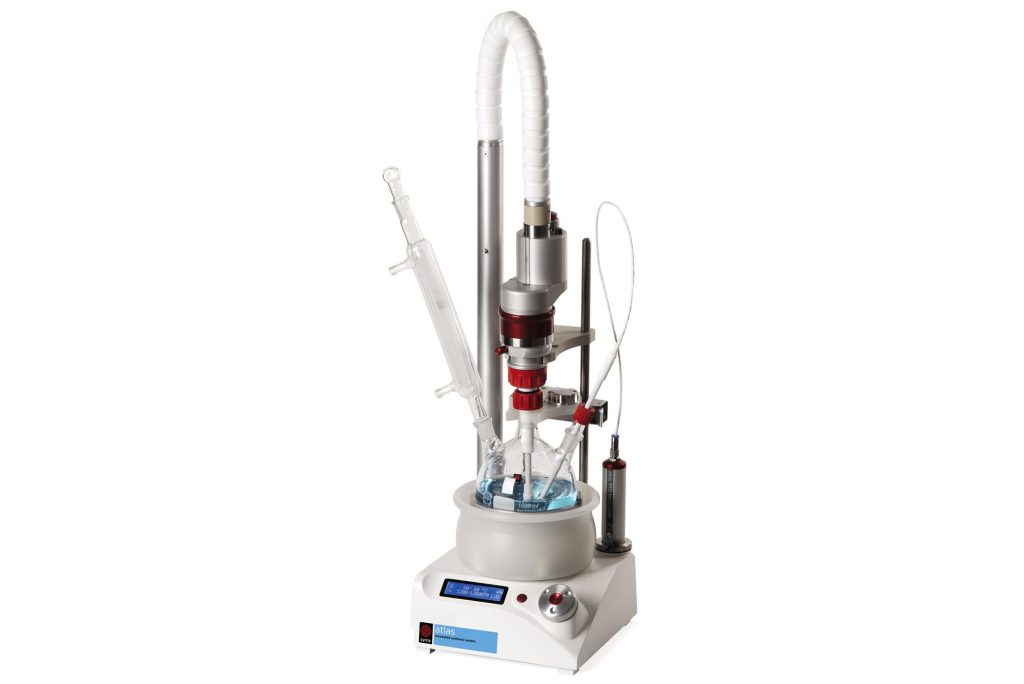

A simple upgrade to the Atlas Lithium is to add overhead mechanical stirring.  This system, called the Atlas Sodium, uses the Scorpion Overhead Stirrer and is more suitable viscous or heterogeneous reactions (to 800 RPM).  The Atlas Sodium can control set points or sophisticated profiles of stirrer speed and temperature and like all systems in the Atlas range, logs data to the base unit.

A photograph of the Atlas Scorpion Overhead Stirrer Motor

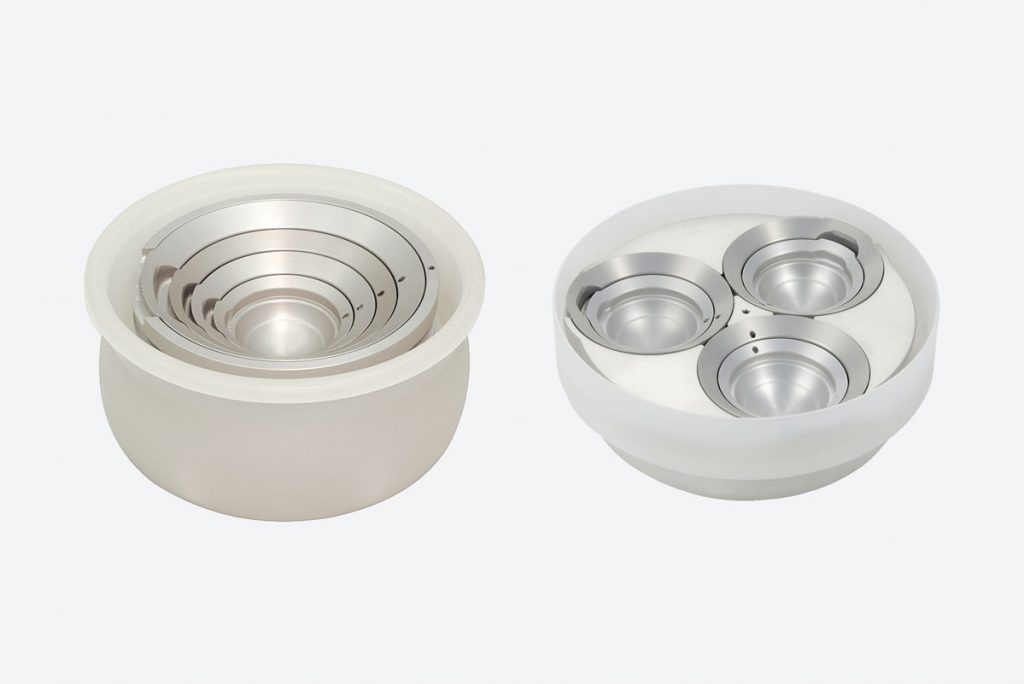

3. A lab without oil baths

The Atlas Stacking Dry Bath is a safer and much more efficient way of heating round bottom flasks without the issues associated with oil baths. The Stacking Dry Bath has a series of concentric inserts to hold round bottom flasks from 50 mL to 1 L.  The inserts provide excellent thermal transfer to optimise heating times. The exterior of the Dry Bath is safe to touch even when the Dry Bath is hot.



Syrris Atlas Dry bath Coldplate

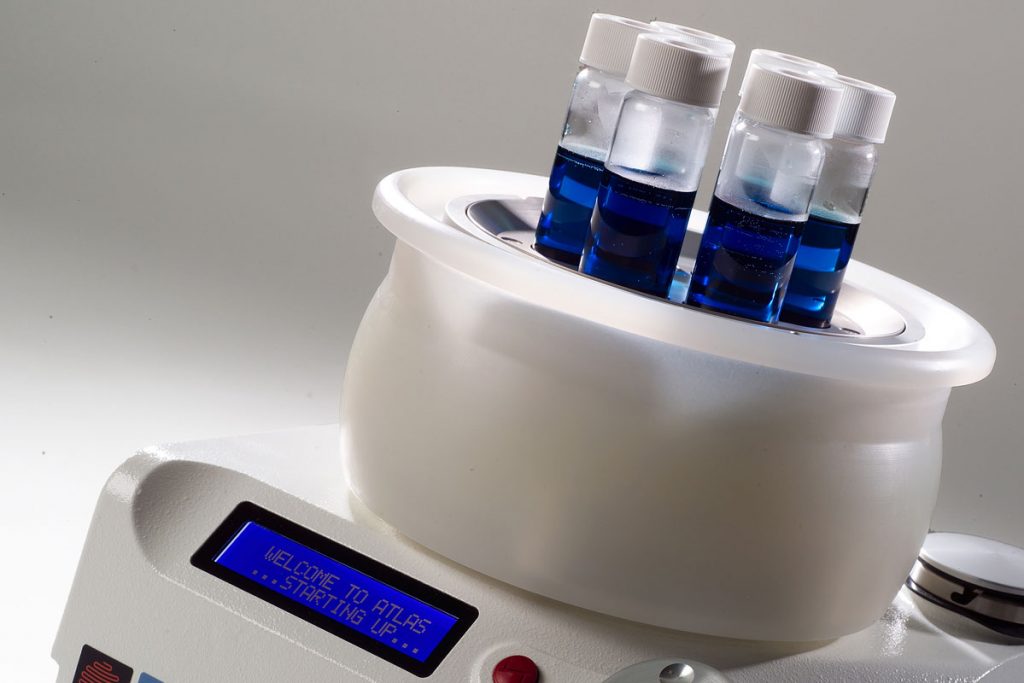

Syrris Atlas Vial bath
Syrris Atlas Dry bath

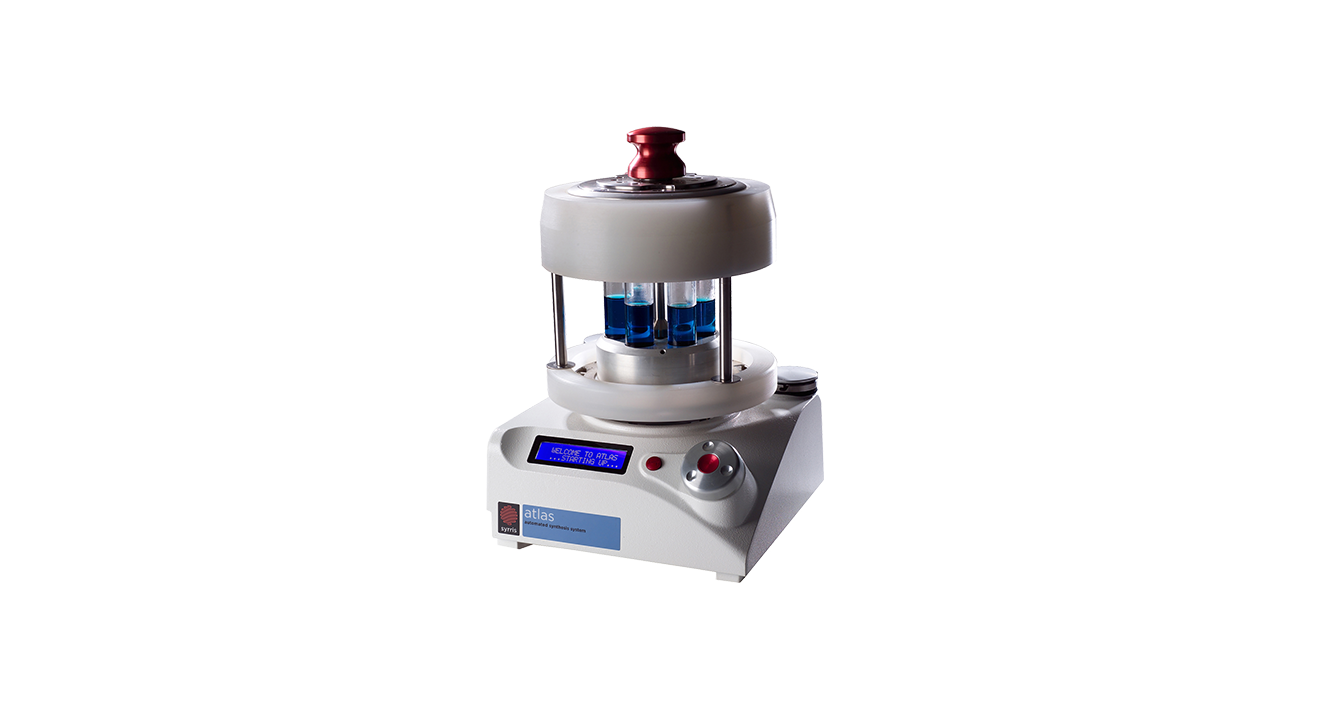

4. Parallel chemistry at reflux

The Orbit system is a high performance, low cost parallel synthesis module for research and development chemistry. 6 or 12 reaction tubes can be magnetically stirred and heated to 280 °C with reflux or cooled to –40 °C. Orbit fits conveniently on the Atlas Hotplate, Atlas Hot and Cold Plate or regular hotplates.  Water and inert gas are connected to the reflux unit to ensure that the reactions proceed at reflux under an inert atmosphere. The parallel reaction samples can be removed without having to remove the water and gas supplies making the Orbit a very convenient system for parallel reflux chemistry.

Syrris Atlas Orbit Product Shot

5. Accurate stand-alone dosing

The Atlas Syringe Pump is a versatile volumetric dosing and/or sampling system. It allows 2 independent refilling flows, one continuous flow, reaction sampling, intelligent control of pH and temperature dependent dosing. It consists of two syringes and multi-port valves and be controlled from the front panel in standalone mode or by automation software.

What our customers say

Syrris also worked with us to develop customized stirrers and baffles specifically for our work, and we were able to get what we needed in a reasonable time and for a reasonable price.”

Onofre Casanova, Chemical Process Engineer, IFF, Benicarlo, Spain
Onofre Casanova, Chemical Process Engineer, IFF, Benicarlo, Spain

Specifications

Vessel Volume Range 100 mL, 160 mL, 300 mL and 450ml in 316 Stainless Steel, Hastelloy, or Titanium
Other Vessel Types No (jacketed vessels can be used with the Atlas Classic base, but not with the pressure system)
Stirring Options Magnetic stirring up to 1200 rpm, Overhead stirring up to 2000 rpm
Automation Yes – as standard
Modes of Operation Atlas PC Software, Manual Operation, AtlasClassic Click Wheel Control
Sensor Options Temperature, Pressure

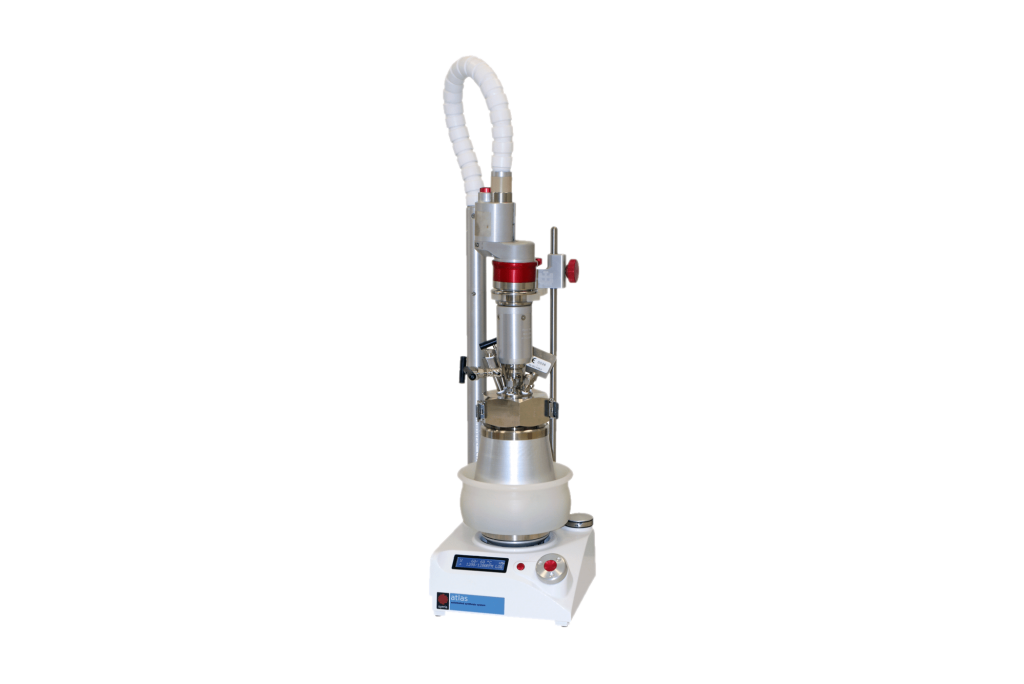

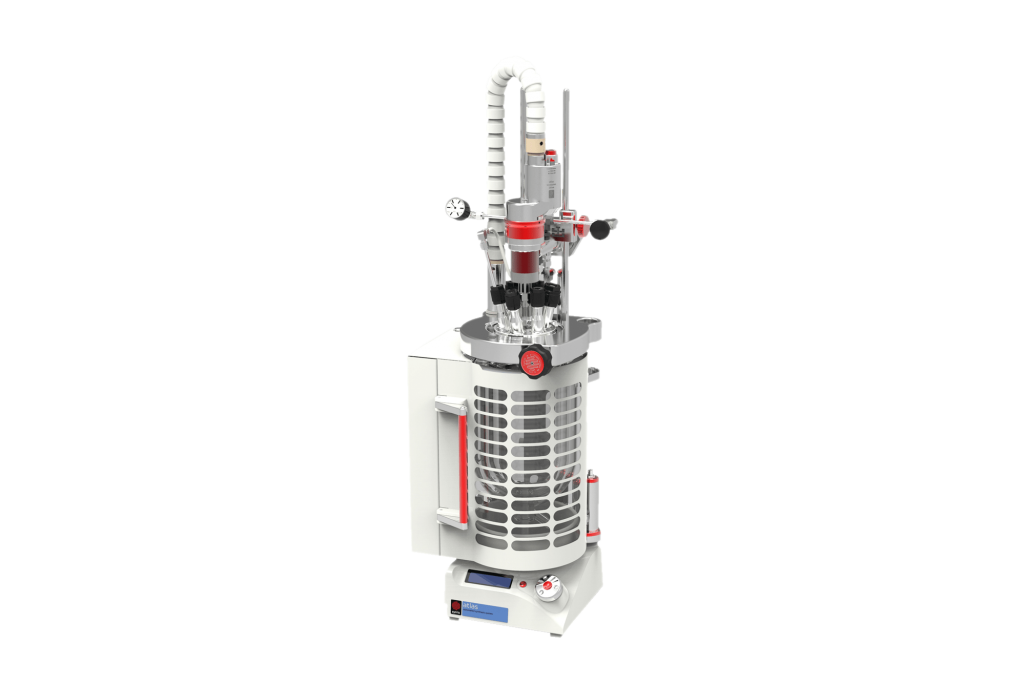

Pressure Range Up to 200 Bar (100 Bar with H2). See Atlas 3 Bar Pressure system for pressures up to 3 bar
Reagent Addition and Sampling Available on request
Syrris Atlas Flasks & Vials close-up
Syrris Atlas Flasks & Vials close-up
Syrris Atlas Flasks & Vials close-up

What we say

During my PhD, one of my biggest frustrations was that the individual labware I used was never compatible with each other. The Atlas range clicks together so seamlessly and helps chemists focus on what is most important….their chemistry.”

Dr. Stephen Heffernan, Batch Specialist
Dr. Stephen Heffernan, Batch Specialist at Syrris

Modules

  1. Base units

    • Atlas Lithium

      (included)

      Atlas Lithium automates reactions in round bottomed flasks or vials. With a Magnetic Stirrer, Hotplate, and Stacking Dry Bath, Atlas […]

      View module details
    • Atlas Sodium

      (included)

      Atlas Sodium is an automated reactor system for round bottom flasks with overhead stirring and temperature control. It includes a […]

      View module details
  2. Probes and Nodes

    • Temperature Node and Probe

      (optional)

      Easy connection to the Atlas HD base. Our probes are available in different lengths to suit different vessels.

      View module details
    • pH Probe and Node

      (optional)

      Accurate measurement and monitoring of pH. Control pH in combination with the Atlas Syringe Pump. These pH Probes connect to […]

      View module details
  3. Automation

    • Atlas PC Software 1

      (optional)

      Atlas Software 1 is an easy-to-use PC based application for control and analysis of experiments. Whole systems including stirrers, circulators, […]

      View module details
  4. Accessories

    • Atlas Stacking Dry Bath

      (included)

      The Atlas Stacking Dry Bath is a new way of heating round bottom flasks without the issues associated with oil […]

      View module details
    • Atlas Orbit Systems

      (included)

      The Atlas Orbit from Syrris is a high performance, low-cost parallel synthesis module for research and development chemistry. 6 or […]

      View module details
    • Atlas Hot and Cold Plate

      (optional)

      The Atlas Hot and Cold Plate is an easy and accurate way of heating and cooling reactions in flasks or […]

      View module details
    • Atlas Hotplate (for Atlas Classic) (230V/120V)

      (optional)

      The Atlas Hotplate for the Atlas Classic Base Unit connects via a bayonet fitting and is automatically detected. The Atlas […]

      View module details
    • Atlas Hotter Hotplate (for Atlas Classic)

      (optional)

      The Atlas Hotter Hotplate for the Base Unit connects via a bayonet fitting and is automatically detected. The Atlas Hotplate […]

      View module details
  5. Dosing

  6. Optional modules

    • Atlas Syringe Pump

      (optional)

      View module details
    • Atlas Hot and Cold Plate

      (optional)

      The Atlas Hot and Cold Plate is an easy and accurate way of heating and cooling reactions in flasks or […]

      View module details
    • Atlas Hotplate (for Atlas Classic) (230V/120V)

      (optional)

      The Atlas Hotplate for the Atlas Classic Base Unit connects via a bayonet fitting and is automatically detected. The Atlas […]

      View module details
    • Atlas Hotter Hotplate (for Atlas Classic)

      (optional)

      The Atlas Hotter Hotplate for the Base Unit connects via a bayonet fitting and is automatically detected. The Atlas Hotplate […]

      View module details
    • Atlas PC Software 1

      (optional)

      Atlas Software 1 is an easy-to-use PC based application for control and analysis of experiments. Whole systems including stirrers, circulators, […]

      View module details
    • Temperature Node and Probe

      (optional)

      Easy connection to the Atlas HD base. Our probes are available in different lengths to suit different vessels.

      View module details
    • pH Probe and Node

      (optional)

      Accurate measurement and monitoring of pH. Control pH in combination with the Atlas Syringe Pump. These pH Probes connect to […]

      View module details
