Asia Flow Chemistry System
Asia is a revolutionary range of advanced flow chemistry products from Syrris. It has been designed by chemists for chemists to enable the widest variety of chemical reactions and ultimate ease of use
At a glance
The proprietary technology allows manually controlled or fully automated experiments. The Asia Flow Chemistry System offers maximum chemical resistance with an extensive range of temperatures, pressures, and reaction times on scales from mg to kg. The Asia Flow Chemistry System celebrated its unique design as a winner of the R&D 100 Award for innovative technology, is a benchmark of excellence in continuous flow, and is proven in over 250 publications.
Download the Syrris Asia Flow Chemistry System publications list
Request more information
1. System can be tailored to your chemistry
Asia offers a variety of flow chemistry modules and systems in either entry level or advanced configurations for both beginners with modest budgets and experts who demand the utmost functionality. The modular nature allows you to be flexible with your applications and adapt your configuration to suit your needs. The Asia system is truly the most flexible flow chemistry system available.
2. Precise control of your reaction
Asia allows unprecedented control of reaction conditions. Precise control of key reaction parameters such as temperature, reaction time, mixing and molar ratios allows for higher yields and better selectivity. Reactions that would otherwise be difficult using traditional batch conditions can easily be harnessed, flow reactions can be telescoped (or run in sequence), reactive intermediates can be prepared with no isolation and potentially hazardous reagents can be generated and used in-situ.
3. Wider range of chemistry
Asia offers a wide range of flow reactors for both solution phase and solid phase chemistry. The complete range of reactors offer excellent chemical resistance, high pressures, wide temperature ranges, visibility of your reaction, and rapid mixing. Along with traditional methods of enabling chemical reactions, such as temperature and chemical activation, Asia offers access to greener, reagentless techniques such as electrochemistry and photochemistry applications. These unique modes of chemistry and the flexible, versatile nature of Asia makes it ideal for the widest range of flow chemistry applications.
4. Smooth and Accurate Pumping
Designed specifically for flow chemistry, the Asia Syringe Pump provides incredibly smooth flow rates over the complete range of dynamic flow rates. Precise flow rates with extremely smooth pressure output are key to getting the greatest control for your flow chemistry experiments. The compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and an accurate flow rate range from 1 μL to 10 mL/min.
5. Continuous reaction work-up and analysis
Asia provides the ability to perform key-post synthesis work-up and analysis. The Asia FLLEX module performs continuous extraction or in-situ quenching of your flow reaction followed by separation of the aqueous and organic phase using advanced membrane technology. It is the flow chemistry equivalent of a separating funnel. The Asia Sampler and Dilutor enables on-line reaction analysis by offering automated sample extraction, dilution and transfer to virtually any LCMS, GCMS, UPLC, etc. for off-line, continuous analysis of your flow reactions.
6. Discover new chemistry
The unique benefits of flow chemistry enable the use of chemistries not readily available using traditional techniques. Asia flow chemistry system allows you to expand your chemistry to explore novel disconnections, achieve greater chemical space for research and development, and adopt the growing areas of electrochemistry and photochemistry to push your current boundaries.
I have worked with flow chemistry for 15 years. Asia is the most advanced system available which enables me to perform chemistry I previously couldn’t.”
Specifications
| Temperature Range | -100°C to +250°C |
|---|---|
| Flow Rate | 1 μL/min to 10 mL/min per pump channel |
| Residence Times | 1 second to multiple hours |
| Pressure Range | 0 to 20bar (300psi) |
| Liquid Phase Reactor Volumes | 62.5 µL, 250 µL, and 1,000 µL for glass microchips, 4 mL and 16 mL for tube reactors |
| Solid Phase Reactor Volumes | 0.7 mL, 2.4 mL, 5.6 mL, and 12 mL |
| Wetted Parts | Glass, PTFE and PCTFE (stainless steel and hastelloy possible) |
| Mixing | Rapid diffusion mixing |
| Production Volumes | Milligrams to Kilograms |
Applications
This product is suitable for the following applications.
System configurations
Configure your own system
Due its modular nature, the Asia system can be tailored to suit your chemistry. All modules can be interchanged so that you can choose your own functionality. Speak to one of the Syrris chemists to assist you in your choice.
Included modules
-
Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, 1 mL, and 10 mL also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist…
-
Asia Automated Reagent Injector
The Asia Automated Reagent Injector allows automated aspiration and loading of multiple reagents into injection loops under inert conditions; and subsequent pressurization prior to injection. Removable racks for a range of vial sizes and pre-pressurization to avoid pressure drops within the reactions (up to 20…
-
Asia Chip Climate Controller
The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier-based system ensures quick and accurate temperature control within a very compact module.…
-
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors, or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…
-
Asia Cryo Controller
The Asia Cryo Controller is a high performance, ultra cold cooling module for flow chemistry reactions. This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to -70°C or a range of glass or quartz microreactors…
-
Asia Tube Cooler
The Asia Tube Cooler enables a range of fluoropolymer and stainless steel Asia Tube Reactors to be cooled to as low as -68°C. The module can either be used in standalone mode or can plug into an Asia Heater to have the reaction temperature monitored…
-
Asia FLUX Electrochemisty Module
The Asia FLUX is a flexible, tunable, continuous flow electrochemistry module. This compact module enables unique chemical transformations with ultimate ease of use. The module consists of a power supply and electrochemical flow cell. The cell, with minimal electrode gap, enables a wide range of…
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…
-
Asia FLLEX (Flow Liquid Liquid EXtraction)
The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this aqueous workup or extraction module initially mixes the organic product stream with an aqueous phase, then allows time for diffusion to occur before finally splitting…
-
Asia Sampler and Dilutor
The Asia Sampler and Dilutor enables on-line reaction analysis by offering automated sample extraction, dilution and transfer to virtually any LCMS, GCMS, UPLC, etc. Without stopping the experiment, the Asia Sampler and Dilutor automatically takes a 5 µL sample (or multiple samples) from the flowing…
-
Asia Product Collector
The Asia Product Collector allows convenient collection of samples into a range of vessel sizes. The automated 3-way valve allows the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. When controlled by…
-
Asia Automated Collector
The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. The 3-way valve automatically…
-
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, or 330 systems). Controlling the Asia Automator system from a PC: By connecting the Asia Automator and the Asia Syringe Pump to a PC via…
-
Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time, temperature, reagent quantities, concentrations, and equivalents to be used. The software then calculates all…
Optional modules
Starter Systems
The Asia Starter Systems are ideal for chemists eager to begin using flow chemistry as well as academics interested in introducing flow chemistry to their group. The easy-to-use and affordable systems contain all essential flow system parts
Included modules
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Chip Climate Controller
The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier-based system ensures quick and accurate temperature control within a very compact module.…
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…
Optional modules
-
Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, 1 mL, and 10 mL also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist…
-
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors, or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…
-
Asia Product Collector
The Asia Product Collector allows convenient collection of samples into a range of vessel sizes. The automated 3-way valve allows the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. When controlled by…

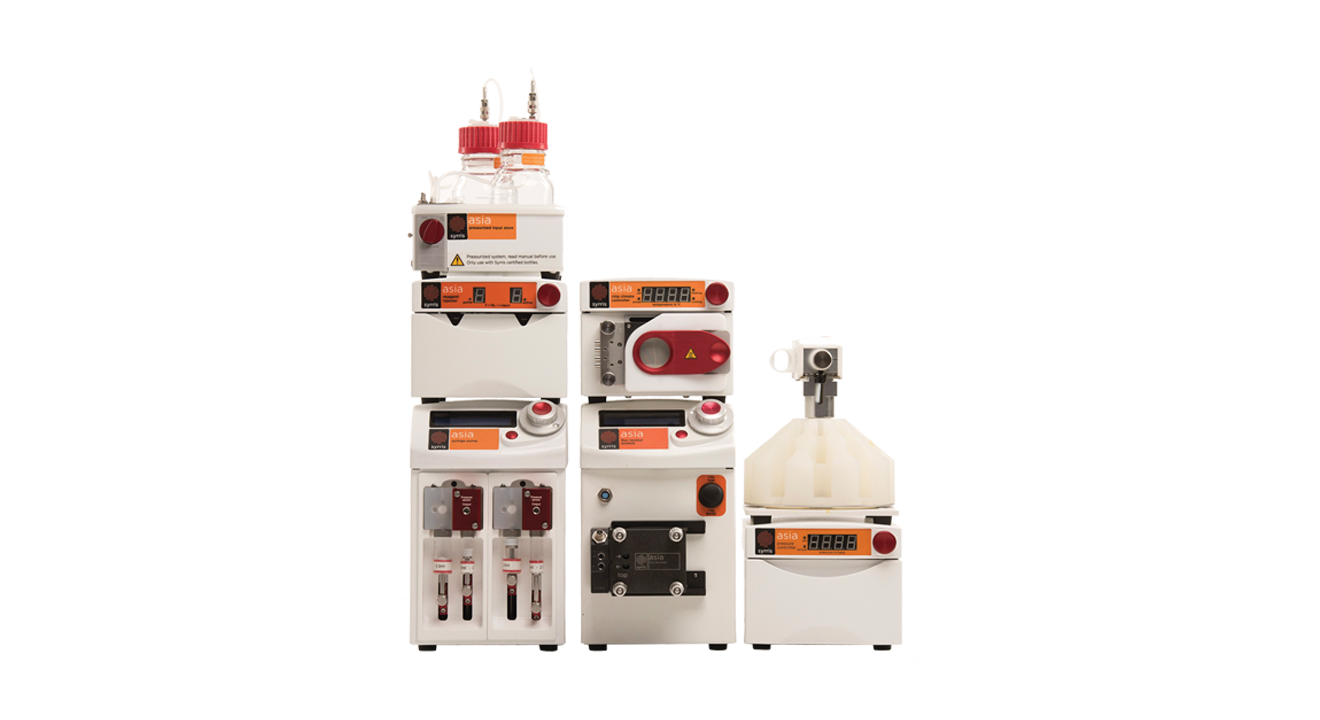

Electrochemistry System
Electrochemical activation of chemical reagents enables selectivity and transformations impossible by other techniques. The Asia Electrochemistry Systems give easy access to electrochemical reactions in continuous flow.
Included modules
-
Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, 1 mL, and 10 mL also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist…
-
Asia Chip Climate Controller
The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier-based system ensures quick and accurate temperature control within a very compact module.…
-
Asia FLUX Electrochemisty Module
The Asia FLUX is a flexible, tunable, continuous flow electrochemistry module. This compact module enables unique chemical transformations with ultimate ease of use. The module consists of a power supply and electrochemical flow cell. The cell, with minimal electrode gap, enables a wide range of…
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…
-
Asia Product Collector
The Asia Product Collector allows convenient collection of samples into a range of vessel sizes. The automated 3-way valve allows the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. When controlled by…
Optional modules
-
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors, or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, 1 mL, and 10 mL also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist…
-
Asia Automated Collector
The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. The 3-way valve automatically…
-
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, or 330 systems). Controlling the Asia Automator system from a PC: By connecting the Asia Automator and the Asia Syringe Pump to a PC via…
-
Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time, temperature, reagent quantities, concentrations, and equivalents to be used. The software then calculates all…
Cold System
The Asia Cold Systems have been specially defined to enable safe chemical reactions under cryogenic conditions (e.g. exothermic organometallic reactions). The systems incorporate all the required parts for running reactions in continuous flow at temperatures down to -100°C.
Included modules
-
Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, 1 mL, and 10 mL also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist…
-
Asia Tube Cooler
The Asia Tube Cooler enables a range of fluoropolymer and stainless steel Asia Tube Reactors to be cooled to as low as -68°C. The module can either be used in standalone mode or can plug into an Asia Heater to have the reaction temperature monitored…
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…
Optional modules
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, 1 mL, and 10 mL also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist…
-
Asia Chip Climate Controller
The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier-based system ensures quick and accurate temperature control within a very compact module.…
-
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors, or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…
-
Asia Cryo Controller
The Asia Cryo Controller is a high performance, ultra cold cooling module for flow chemistry reactions. This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to -70°C or a range of glass or quartz microreactors…
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…
-
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, or 330 systems). Controlling the Asia Automator system from a PC: By connecting the Asia Automator and the Asia Syringe Pump to a PC via…
-
Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time, temperature, reagent quantities, concentrations, and equivalents to be used. The software then calculates all…
Discovery System
For limited quantities of starting material or expensive reagents, Asia Discovery Chemistry Systems offer setups capable of running flow experiments using very small amounts of reagents. Users can design a list of experiments, each requiring just hundreds of microliters of reagents, and run them in sequence.
Included modules
-
Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, 1 mL, and 10 mL also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist…
-
Asia Chip Climate Controller
The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier-based system ensures quick and accurate temperature control within a very compact module.…
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…
Optional modules
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Automated Reagent Injector
The Asia Automated Reagent Injector allows automated aspiration and loading of multiple reagents into injection loops under inert conditions; and subsequent pressurization prior to injection. Removable racks for a range of vial sizes and pre-pressurization to avoid pressure drops within the reactions (up to 20…
-
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors, or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…
-
Asia Cryo Controller
The Asia Cryo Controller is a high performance, ultra cold cooling module for flow chemistry reactions. This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to -70°C or a range of glass or quartz microreactors…
-
Asia FLLEX (Flow Liquid Liquid EXtraction)
The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this aqueous workup or extraction module initially mixes the organic product stream with an aqueous phase, then allows time for diffusion to occur before finally splitting…
-
Asia Automated Collector
The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. The 3-way valve automatically…
-
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, or 330 systems). Controlling the Asia Automator system from a PC: By connecting the Asia Automator and the Asia Syringe Pump to a PC via…
-
Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time, temperature, reagent quantities, concentrations, and equivalents to be used. The software then calculates all…
Process Optimization System
Ideal for converting a batch reaction to a flow process and varying reaction parameters to optimize the reaction. Easy setup of tens of automated reactions using the intuitive Asia Manager Software. The systems will calculate the required flow rates and reagent amounts and fully automate each reaction.
Included modules
-
Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, 1 mL, and 10 mL also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist…
-
Asia Chip Climate Controller
The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier-based system ensures quick and accurate temperature control within a very compact module.…
-
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors, or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…
-
Asia Automated Collector
The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. The 3-way valve automatically…
-
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, or 330 systems). Controlling the Asia Automator system from a PC: By connecting the Asia Automator and the Asia Syringe Pump to a PC via…
-
Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time, temperature, reagent quantities, concentrations, and equivalents to be used. The software then calculates all…
Optional modules
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Automated Reagent Injector
The Asia Automated Reagent Injector allows automated aspiration and loading of multiple reagents into injection loops under inert conditions; and subsequent pressurization prior to injection. Removable racks for a range of vial sizes and pre-pressurization to avoid pressure drops within the reactions (up to 20…
-
Asia Chip Climate Controller
The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier-based system ensures quick and accurate temperature control within a very compact module.…
-
Asia FLLEX (Flow Liquid Liquid EXtraction)
The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this aqueous workup or extraction module initially mixes the organic product stream with an aqueous phase, then allows time for diffusion to occur before finally splitting…
-
Asia Sampler and Dilutor
The Asia Sampler and Dilutor enables on-line reaction analysis by offering automated sample extraction, dilution and transfer to virtually any LCMS, GCMS, UPLC, etc. Without stopping the experiment, the Asia Sampler and Dilutor automatically takes a 5 µL sample (or multiple samples) from the flowing…
Nanoparticle System
Flow chemistry offers exceptional advantages for nanoparticle synthesis which result in narrow particle size distribution and control over shape and architecture. The systems offer fast and reproducible mixing, excellent heat transfer and accurate temperature control.
Included modules
-
Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors, or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…
-
Asia Product Collector
The Asia Product Collector allows convenient collection of samples into a range of vessel sizes. The automated 3-way valve allows the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. When controlled by…
Optional modules
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, 1 mL, and 10 mL also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist…
-
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors, or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…
-
Asia Automated Collector
The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. The 3-way valve automatically…
-
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, or 330 systems). Controlling the Asia Automator system from a PC: By connecting the Asia Automator and the Asia Syringe Pump to a PC via…
-
Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time, temperature, reagent quantities, concentrations, and equivalents to be used. The software then calculates all…
Scale-up System
Flow chemistry offers an easy way for scaling up reactions. Flow reaction parameters can be optimized using a small microreactor on few milligrams before moving onto a large tube reactor system for synthesizing multi-gram quantities of products.
Included modules
-
Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors, or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…
-
Asia Tube Cooler
The Asia Tube Cooler enables a range of fluoropolymer and stainless steel Asia Tube Reactors to be cooled to as low as -68°C. The module can either be used in standalone mode or can plug into an Asia Heater to have the reaction temperature monitored…
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…
Optional modules
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors, or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…
-
Asia Cryo Controller
The Asia Cryo Controller is a high performance, ultra cold cooling module for flow chemistry reactions. This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to -70°C or a range of glass or quartz microreactors…
-
Asia FLLEX (Flow Liquid Liquid EXtraction)
The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this aqueous workup or extraction module initially mixes the organic product stream with an aqueous phase, then allows time for diffusion to occur before finally splitting…
-
Asia Sampler and Dilutor
The Asia Sampler and Dilutor enables on-line reaction analysis by offering automated sample extraction, dilution and transfer to virtually any LCMS, GCMS, UPLC, etc. Without stopping the experiment, the Asia Sampler and Dilutor automatically takes a 5 µL sample (or multiple samples) from the flowing…
-
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, or 330 systems). Controlling the Asia Automator system from a PC: By connecting the Asia Automator and the Asia Syringe Pump to a PC via…
-
Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time, temperature, reagent quantities, concentrations, and equivalents to be used. The software then calculates all…
Premium System
Ideal for chemists who are interested in the utmost functionality and access to the widest range of chemical space. The Asia Premium Systems offer a full range of Asia modules and enable standard flow chemistry operations (reaction optimization, scale-up, etc.) as well as advanced use (electrochemistry, multi-step reactions, cryogenic reactions, etc.).
Included modules
-
Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, 1 mL, and 10 mL also available). The sample loops can be filled with reagent by syringe through the Luer fittings. Reagent volumes that consist…
-
Asia Chip Climate Controller
The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC without the need for an external circulator or cold water supply. The Peltier-based system ensures quick and accurate temperature control within a very compact module.…
-
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in seconds, it can quickly and accurately heat glass microreactors, tube reactors, or solid phase reactors. Microreactors can be heated up to 250ºC using the Microreactor…
-
Asia Cryo Controller
The Asia Cryo Controller is a high performance, ultra cold cooling module for flow chemistry reactions. This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to -70°C or a range of glass or quartz microreactors…
-
Asia FLUX Electrochemisty Module
The Asia FLUX is a flexible, tunable, continuous flow electrochemistry module. This compact module enables unique chemical transformations with ultimate ease of use. The module consists of a power supply and electrochemical flow cell. The cell, with minimal electrode gap, enables a wide range of…
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 bar. By pressurizing the fluidic system, the Asia Pressure Controller enables reactors to be heated up to 150ºC over the atmospheric boiling point of solvents…
-
Asia FLLEX (Flow Liquid Liquid EXtraction)
The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this aqueous workup or extraction module initially mixes the organic product stream with an aqueous phase, then allows time for diffusion to occur before finally splitting…
-
Asia Sampler and Dilutor
The Asia Sampler and Dilutor enables on-line reaction analysis by offering automated sample extraction, dilution and transfer to virtually any LCMS, GCMS, UPLC, etc. Without stopping the experiment, the Asia Sampler and Dilutor automatically takes a 5 µL sample (or multiple samples) from the flowing…
-
Asia Automated Collector
The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the solvent between samples (and/or reaction samples not at steady state) to be diverted to waste and the reaction to be collected. The 3-way valve automatically…
-
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, or 330 systems). Controlling the Asia Automator system from a PC: By connecting the Asia Automator and the Asia Syringe Pump to a PC via…
-
Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software allows "chemist familiar" terms to be entered, e.g. required reaction time, temperature, reagent quantities, concentrations, and equivalents to be used. The software then calculates all…
Optional modules
-
Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x 250 mL reagent bottles (included) under a pressurized inert atmosphere. This not only enables the use of air and moisture sensitive reagents but also assists…
-
Asia Syringe Pump
Designed specifically for flow chemistry, the ultra-smooth Asia Syringe Pump is extremely chemically resistant and is rated to 20 bar (300psi). This compact microfluidic module offers two independent flow channels each with an integrated pressure sensor and a flow rate range from 1.0 μL to…
-
Asia Automated Reagent Injector
The Asia Automated Reagent Injector allows automated aspiration and loading of multiple reagents into injection loops under inert conditions; and subsequent pressurization prior to injection. Removable racks for a range of vial sizes and pre-pressurization to avoid pressure drops within the reactions (up to 20…
-
Support
These support articles may be helpful for this system
-
Questions & answers
-
What warranty do Syrris systems come with and what does it cover?
All Syrris hardware comes with a one year (non-wetted) parts warranty. Please see the Terms and Conditions for further information.
-
Does Syrris provide an installation service?
Yes, Syrris offer a complete system Installation and Training service. Please talk to your Sales representative for pricing structure.
-
Does Syrris provide an extended warranty/support package?
Yes, Syrris can provide a bespoke extended warranty and/or support package for your system. Please talk to your Sales representative for pricing structure.
-
Will I have a dedicated Account Manager I can deal with?
Yes, you’ll have a dedicated Account Manager assigned to you based on your location.
-
Where can I see the products in person?
Syrris exhibits at many international shows throughout the year, in addition to running global workshops and roadshows. Our sales team can arrange for a web demonstration and/or a physical demonstration. See our Upcoming Events or speak to your Sales representative for more information.
-
Are wetted parts chemically resistant?
All wetted parts are made from either glass, PTFE, FFKM or other similar fluoropolymers.
-
What warranty do Syrris systems come with and what does it cover?
